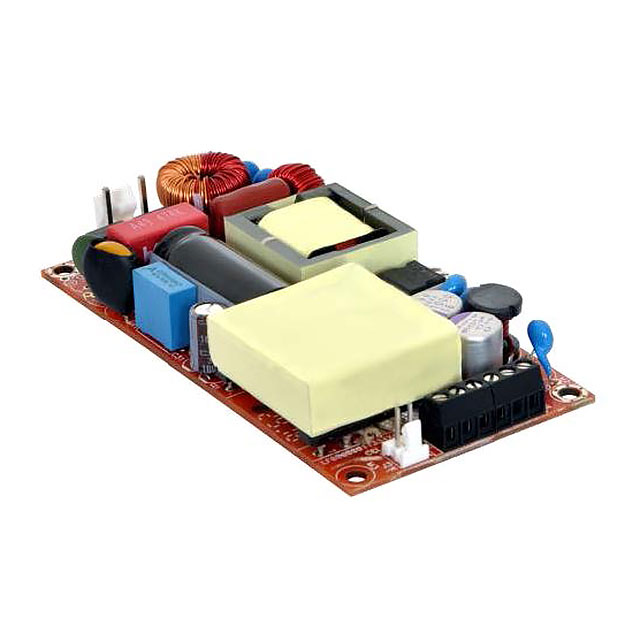

MBC180-1024L

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 120/180W

Deep-Dive with AI

Search across all available documentation for this part.

MBC180-1024L

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 120/180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MBC180-1024L

Applications	Medical
Approval Agency	CE
Current - Output 1	5 A
Efficiency	90 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	120 W, 180 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	19.1 mm
Size / Dimension [z]	0.75 in
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

MBC180 Series

Part	Type	Voltage - Isolation	Mounting Type	Approval Agency	Current - Output 1	Features	Applications	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]
EOS Power India Private Ltd MBC180-1058L	Open Frame	4000 V	Chassis Mount	CE	2.07 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	92 %	1	264 VAC	80 VAC
EOS Power India Private Ltd MBC180-1030L	Open Frame	4000 V	Chassis Mount	CE	4 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	90 %	1	264 VAC	80 VAC
EOS Power India Private Ltd MBC180-1012L	Open Frame	4000 V	Chassis Mount	CE	10 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	4 in	2 in		0.75 in		101.6 mm	88 %	1			12 V	50.8 mm	19.1 mm
EOS Power India Private Ltd MBC180-1T15L	Open Frame	4000 V	Chassis Mount	CE	8 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	88 %	1	264 VAC	80 VAC	15 V
EOS Power India Private Ltd MBC180-1048L	Open Frame	4000 V	Chassis Mount	CE	2.5 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	4 in	2 in		0.75 in		101.6 mm	92 %	1			48 V	50.8 mm	19.1 mm
EOS Power India Private Ltd MBC180-1T24L	Open Frame	4000 V	Chassis Mount	CE	5 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	4 in	2 in		0.75 in		101.6 mm	90 %	1			24 V	50.8 mm	19.1 mm
EOS Power India Private Ltd MBC180-1024L	Open Frame	4000 V	Chassis Mount	CE	5 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	4 in	2 in		0.75 in		101.6 mm	90 %	1			24 V	50.8 mm	19.1 mm
EOS Power India Private Ltd MBC180-1015L	Open Frame	4000 V	Chassis Mount	CE	8 A	Adjustable Output DC Input Capable PFC Standby Output Universal Input	Medical	120 W 180 W	4 in	2 in		0.75 in		101.6 mm	88 %	1			15 V	50.8 mm	19.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.78
		5	$ 118.03
		24	$ 114.29

Description

General part information

MBC180 Series

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
