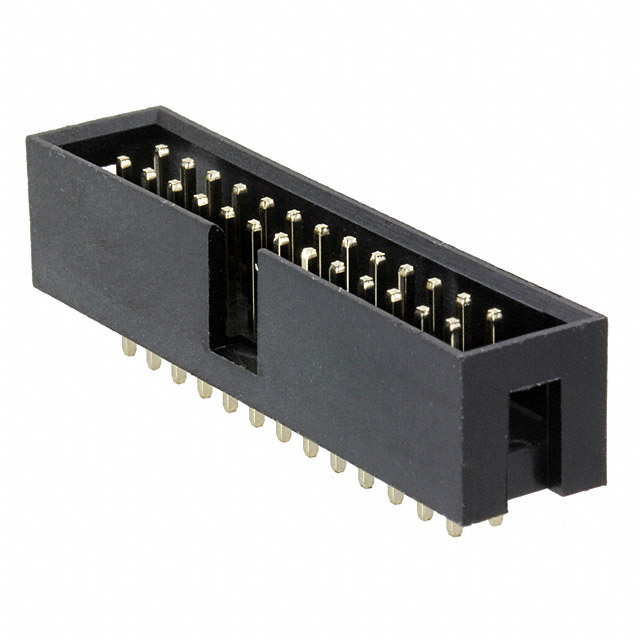

3020-26-0100-00

Active

CnC Tech, LLC

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC Header Mating Guide +2

3020-26-0100-00

Active

CnC Tech, LLC

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC Header Mating Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-26-0100-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3020-26 Series

Part	Contact Shape	Number of Rows	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Type	Voltage Rating	Fastening Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Shrouding	Style	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Features	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Insulation Height	Insulation Height
CnC Tech, LLC 3020-26-0200-00	Square	2	Solder	26	Flash	Male Pin	250 VAC	Push-Pull	Gold	0.346 in	8.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Flash	Header	Through Hole Right Angle	Gold	0.1 in	2.54 mm	UL94 V-0	All	Keying Slot	0.118 in	3 mm	Nylon 9T Polyamide (PA9T)	Black	Brass	-40 °C	105 ░C	2.54 mm	0.1 in	3 A
CnC Tech, LLC 3020-26-0300-00	Square	2	Solder	26	Flash	Male Pin		Push-Pull	Gold			Shrouded - 4 Wall	Board to Cable/Wire	Flash	Header	Surface Mount	Gold	0.1 in	2.54 mm	UL94 V-0	All	Keying Slot			Nylon 9T Polyamide (PA9T)	Black	Brass	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	9 mm	0.354 in
CnC Tech, LLC 3020-26-0300-00-TR	Square	2	Solder	26	Flash	Male Pin		Push-Pull	Gold			Shrouded - 4 Wall	Board to Cable/Wire	Flash	Header	Surface Mount	Gold	0.1 in	2.54 mm	UL94 V-0	All	Keying Slot Pick and Place			Nylon 9T Polyamide (PA9T)	Black	Copper Alloy	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	9 mm	0.354 in
CnC Tech, LLC 3020-26-0100-00	Square	2	Solder	26	Flash	Male Pin	250 VAC	Push-Pull	Gold			Shrouded - 4 Wall	Board to Cable/Wire	Flash	Header	Through Hole	Gold	0.1 in	2.54 mm	UL94 V-0	All	Keying Slot	0.118 in	3 mm	Nylon 9T Polyamide (PA9T)	Black	Brass	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	9 mm	0.354 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.14
		10	$ 0.96
		80	$ 0.87
		720	$ 0.71
		1440	$ 0.63
		5040	$ 0.55
		10080	$ 0.52

Description

General part information

3020-26 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Soldering Guide 3X10,3X20,3221 Series

IDC Header Mating Guide

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
