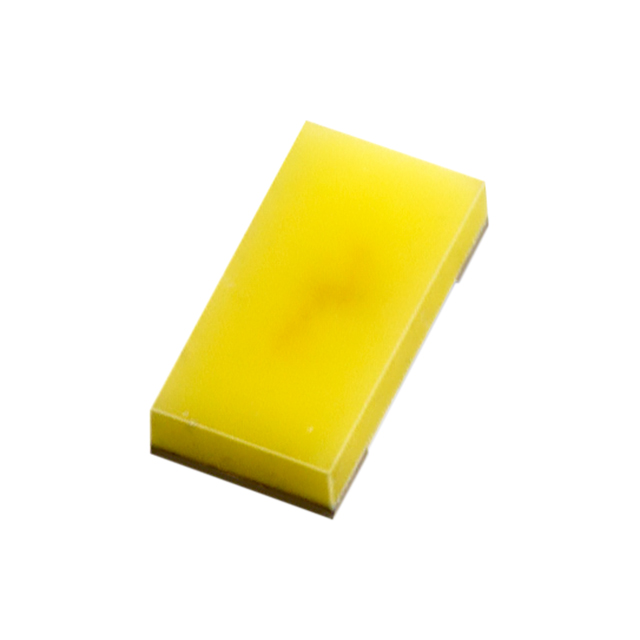

CL-198N-WS-D-T
ActiveCitizen Finedevice Co Ltd
LED WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
CL-198N-WS-D-T
ActiveCitizen Finedevice Co Ltd
LED WHITE SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-198N-WS-D-T |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 300 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 7000 | $ 0.09 | ||
| 14000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 35000 | $ 0.08 | |||
| 49000 | $ 0.07 | |||
| 70000 | $ 0.07 | |||
Description
General part information
CL-198 Series
White LED Indication - Discrete 2.9V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
