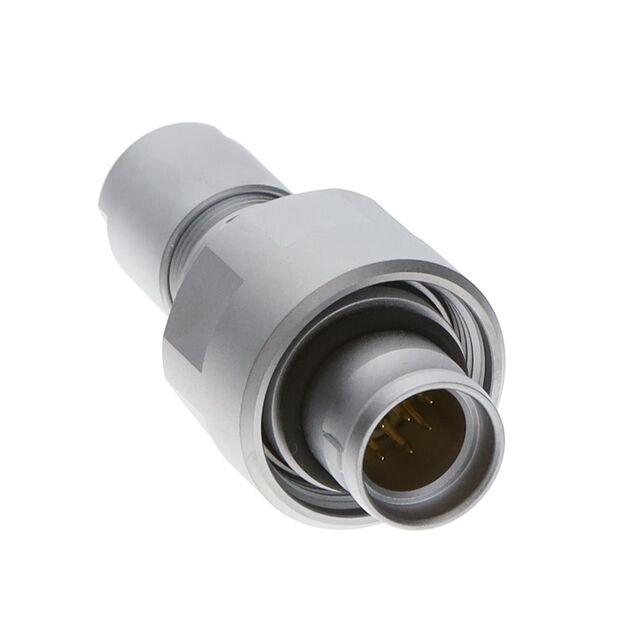

FVG.2W.310.CLAC75

Active

LEMO

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FVG.2W.310.CLAC75

Active

LEMO

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FVG.2W.310.CLAC75

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	0.295 in
Cable Opening [Max] [custom]	7.5 mm
Cable Opening [Min] [custom]	0.28 in
Cable Opening [Min] [custom]	7.1 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	8 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-20 C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	310
Shielding	Shielded

FVG.2W Series

Circular Push Pull Connectors LWP KeyG 14C CHR 9.5mm K

Part	Insert Material	Contact Finish - Mating	Shielding	Features	Shell Material	Color	Backshell Material, Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Material	Primary Material	Current Rating (Amps)	Number of Positions	Shell Finish	Connector Type	Shell Size - Insert	Mounting Type	Material Flammability Rating	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
LEMO FVG.2W.326.CLAC70	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome	7 mm	0.26 in	0.276 in	6.6 mm	Brass	Metal	2 A	26	Chrome	Male Pins Plug	326	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C
LEMO FVG.2W.306.CLAC15	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome					Brass	Metal		6	Chrome	Male Pins Plug	306	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C
LEMO FVG.2W.312.CLAC75	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome		0.28 in	0.295 in	7.1 mm	Brass	Metal	7 A	12	Chrome	Male Pins Plug	312	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C	7.5 mm
LEMO FVG.2W.304.CLAC60Z	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome					Brass	Metal	15 A	4	Chrome	Male Pins Plug	304	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C		0.22 in 0.236 in	5.6 mm 6 mm
LEMO FVG.2W.318.CLAC85	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome					Brass	Metal	5.5 Amps	18	Chrome	Male Pins Plug	318	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C		0.319 in 0.335 in	8.1 mm 8.5 mm
LEMO FVG.2W.319.CLAC75	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome		0.28 in	0.295 in	7.1 mm	Brass	Metal	5 A	19	Chrome	Male Pins Plug	319	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C	7.5 mm
LEMO FVG.2W.314.CLAK95	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome					Brass	Metal	6.5 A	14	Chrome	Male Pins Plug	314	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C
LEMO FVG.2W.310.CLAC85	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome					Brass	Metal	8 A	10	Chrome	Male Pins Plug	310	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C		0.319 in 0.335 in	8.1 mm 8.5 mm
LEMO FVG.2W.302.CLAC75	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome		0.28 in	0.295 in	7.1 mm	Brass	Metal	30 A	2	Chrome	Male Pins Plug	302	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C	7.5 mm
LEMO FVG.2W.310.CLAC75	Polyetheretherketone (PEEK)	Gold	Shielded	Backshell Coupling Nut	Brass	Silver	Brass Chrome		0.28 in	0.295 in	7.1 mm	Brass	Metal	8 A	10	Chrome	Male Pins Plug	310	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	G	-20 C	200 °C	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 135.64
		10	$ 124.47
		25	$ 119.68
		50	$ 115.70

Description

General part information

FVG.2W Series

Circular Push Pull Connectors LWP KeyG 14C CHR 9.5mm K
