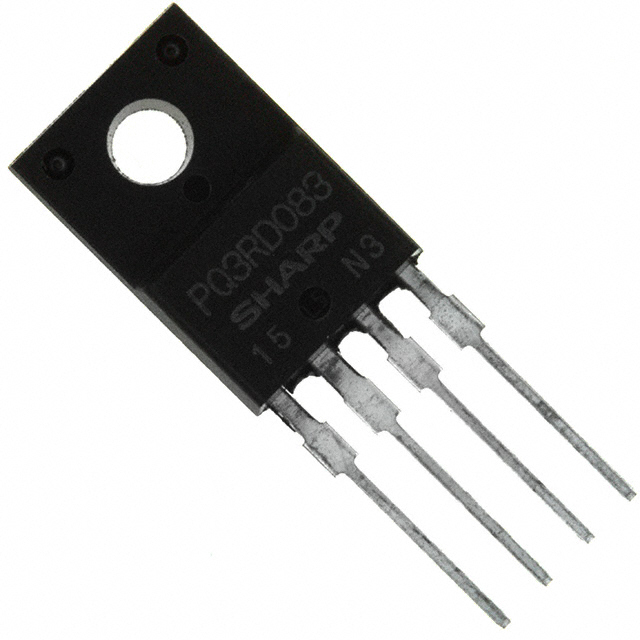

PQ3RD083

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 800MA TO220-4

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 800MA TO220-4

Technical Specifications

Parameters and characteristics for this part

Specification	PQ3RD083

Control Features	Enable
Current - Output	800 mA
Current - Quiescent (Iq)	10 mA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-220-4
Protection Features	Over Current, Over Temperature
PSRR	55 dB
Supplier Device Package	TO-220-4
Voltage - Input (Max) [Max]	20 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Package / Case	PSRR	Protection Features	Output Configuration	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Output Type	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Supplier Device Package	Mounting Type	Control Features	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]
Sharp Microelectronics PQ3RD13	TO-220-4	55 dB	Over Current Over Temperature	Positive	20 V	3.3 V	1	1.81 mOhm	10 mA	0.5 V	TO-220-4	Through Hole	Enable	1 A	-20 C	80 C
Sharp Microelectronics PQ3RD083	TO-220-4	55 dB	Over Current Over Temperature	Positive	20 V	3.3 V	1	1.81 mOhm	10 mA	0.5 V	TO-220-4	Through Hole	Enable	800 mA	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-220-4
