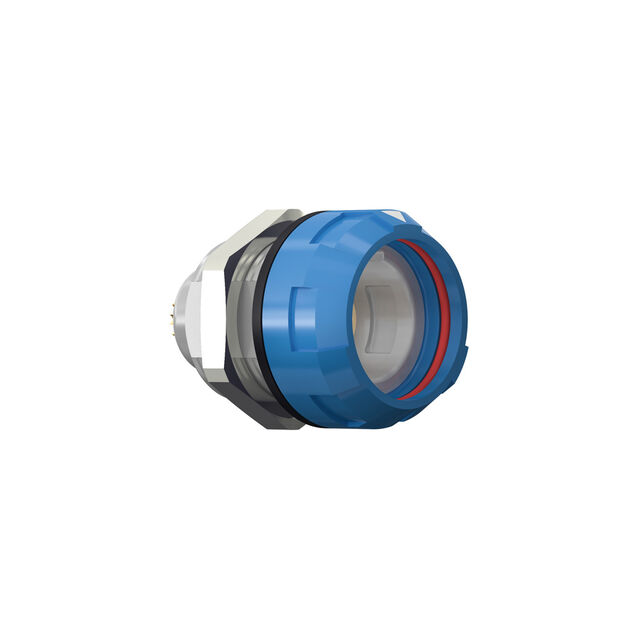

G41MA7-P06LFG0-0060

Active

ODU

ODU MEDI-SNAP RECEPT, STY 4, SZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G41MA7-P06LFG0-0060

Active

ODU

ODU MEDI-SNAP RECEPT, STY 4, SZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G41MA7-P06LFG0-0060

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray, Blue
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	33 V

G41MA7-P Series

Part	Shielding	Connector Type	Primary Material	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Shell Size - Insert	Voltage Rating	Ingress Protection	Contact Finish - Mating	Mounting Feature	Applications	Shell Material	Fastening Type	Current Rating (Amps)	Orientation	Insert Material	Termination	Mounting Type
ODU G41MA7-P12LCC9-0030	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray White	-50 °C	120 °C	12	UL94 V-0	1	25 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	4 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P04NJG0-0030	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray White	-50 °C	120 °C	4	UL94 V-0	1	48 VDC	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)	Crimp
ODU G41MA7-P14QC00-0070	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray	-50 °C	120 °C	14	UL94 V-0	1	25 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	4 A	A	Polyetheretherketone (PEEK)	Solder	Panel Mount Through Hole
ODU G41MA7-P04LJG0-0030	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray White	-50 °C	120 °C	4	UL94 V-0	1	48 VDC	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P02LPH0-0050	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray Green	-50 °C	120 °C	2	UL94 V-0	1	48 VDC	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	12 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P05LJG0-0070	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray	-50 °C	120 °C		UL94 V-0	1	35 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P05LJG0-0040	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray Yellow	-50 °C	120 °C		UL94 V-0	1	35 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P07LFG0-0030	Unshielded	Receptacle Female Sockets	Plastic	Brass	Gray White	-50 °C	120 °C	7	UL94 V-0	1	33 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)
ODU G41MA7-P06LFG0-0060	Unshielded	Receptacle Female Sockets	Plastic	Brass	Blue Gray	-50 °C	120 °C	6	UL94 V-0	1	33 V	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gold	Bulkhead - Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	A	Polyetheretherketone (PEEK)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.21
		10	$ 28.21
		100	$ 25.25

Description

General part information

G41MA7-P Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
