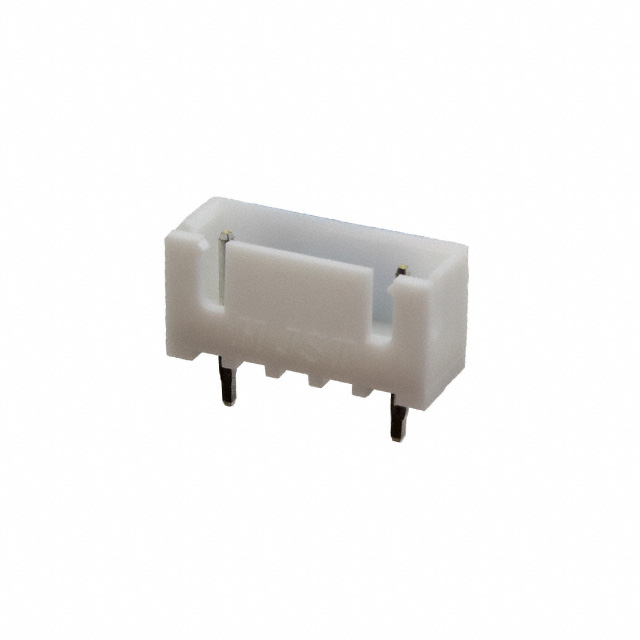

B2(10.0)B-XH-A-U

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 10MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 10MM

Technical Specifications

Parameters and characteristics for this part

Specification	B2(10.0)B-XH-A-U

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	10 mm
Pitch - Mating	0.394 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Termination	Number of Positions Loaded	Current Rating (Amps)	Insulation Material	Insulation Color	Fastening Type	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Shape	Number of Positions	Contact Finish - Post	Style	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Material	Voltage Rating	Number of Rows	Material Flammability Rating
JST Sales America Inc. B2(10.0)B-XH-A-U	Press-Fit Solder	All	3 A	Polyamide (PA66) Nylon 6/6	Natural	Detent Lock	Male Pin	7 mm	0.276 in	Square	2	Tin	Board to Cable/Wire	Shrouded - 4 Wall	Through Hole	-25 °C	85 °C	10 mm	0.394 in	0.134 in	3.4 mm	Header	Brass	250 VDC	1	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.394" (10.00mm)
