Q-7004S000M012I

Active

Amphenol Custom Cable

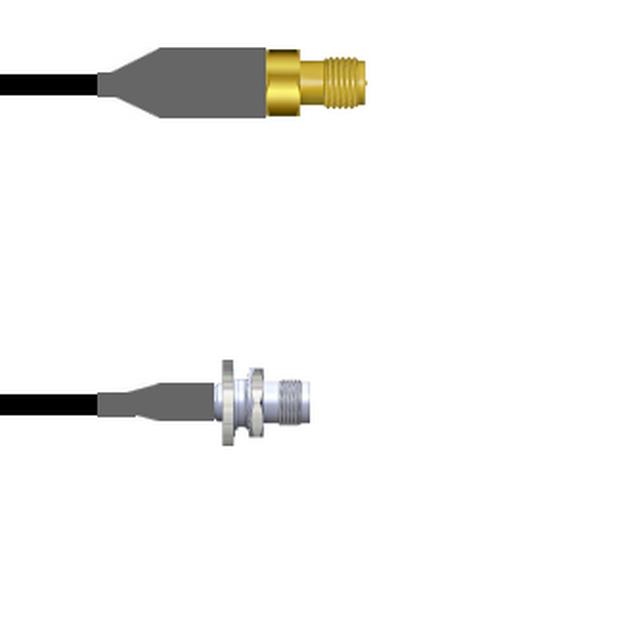

COAX CBL RP-SMA TO TNC 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7004S000M012I

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO TNC 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7004S000M012I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	RP-SMA to TNC

Q-7004S0 Series

Part	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	Features	2nd Connector Mounting Feature	2nd Connector	Cable Impedance	Cable Type	Length	Length	Length	1st Connector	Connector Impedance	Style	Color	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-7004S000M048I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	1200 mm	4 ft	48 in	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female
Amphenol Custom Cable Q-7004S000M018I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240				RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-7004S000M060I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	1.5 m	5 ft	5 '	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female
Amphenol Custom Cable Q-7004S000M002M	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	2 m	6.6 ft	78.7 in	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female
Amphenol Custom Cable Q-7004S000M024I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	609.6 mm		24 "	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female
Amphenol Custom Cable Q-7004S000M012I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	304.8 mm		12 "	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female
Amphenol Custom Cable Q-7004S000M072I	50 Ohms	Free Hanging (In-Line)	Male	Shielded	Bulkhead - Front Side Nut	TNC Jack	50 Ohms	LMR 240	1.8 m	6 ft	72 in	RP-SMA Jack	50 Ohms	RP-SMA to TNC	Black	6000 MHz	Panel Mount	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.70
		25	$ 61.50
		50	$ 60.30
		100	$ 59.09
		250	$ 57.89

Description

General part information

Q-7004S0 Series

Cable Assembly Coaxial RP-SMA to TNC LMR 240 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
