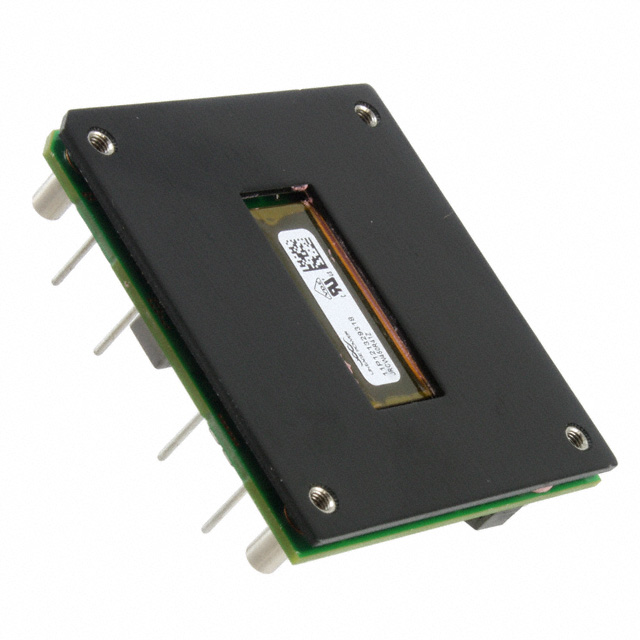

JRCW016A0R641-18Z

Active

OmniOn Power™

DC DC CONVERTER 28V 448W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 28V 448W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Output 1	Control Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Mounting Type	Efficiency	Type	Applications	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]
OmniOn Power™ JRCW016A0R641-18Z	1.5 kV	28 V	Active Low Enable	448 W	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	1	Through Hole	93.5 %	Isolated Module	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	16 A	36 V	85 °C	-40 °C	9-DIP Module	75 V
OmniOn Power™ JRCW016A0R41-TZ	1.5 kV	28 V	Active Low Enable	450 W	2.39 "		0.5 in	60.7 mm	2.27 in		1	Through Hole	93.5 %	Isolated Module	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	16 A	36 V	85 °C	-40 °C	9-DIP Module 1/2 Brick	75 V	12.8 mm	57.7 mm
OmniOn Power™ JRCW016A0R41-18Z	1.5 kV	28 V	Active Low Enable	448 W	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	1	Through Hole	93.5 %	Isolated Module	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	16 A	36 V	85 °C	-40 °C	9-DIP Module	75 V
OmniOn Power™ JRCW016A0R41Z	1.5 kV	28 V	Active Low Enable	448 W	2.39 "	57.7 mm	0.5 in	60.7 mm	2.27 in	12.7 mm	1	Through Hole	93.5 %	Isolated Module	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	16 A	36 V	85 °C	-40 °C	9-DIP Module	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 61.81

General part information

Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
