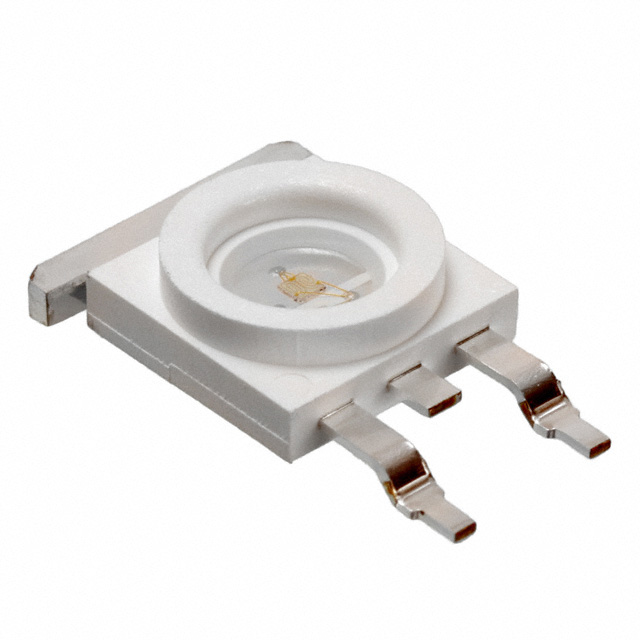

ASMT-MB00-NDF00

Obsolete

Broadcom Limited

LED MOONSTONE BLUE 470NM

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED MOONSTONE BLUE 470NM

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-MB00-NDF00

Color	Blue
Current - Max [Max]	350 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	3.4 mm
Height - Seated (Max) [Max] [z]	0.134 in
Lumens/Watt @ Current - Test	15 lm/W
Luminous Flux @ Current/Temperature	19 lm
Mounting Type	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Size / Dimension [x]	0.335 "
Size / Dimension [x]	8.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength	470 nm
Wavelength [Max]	480 nm
Wavelength [Min]	460 nm

Part	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength	Wavelength [Min]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Color	Mounting Type	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Current - Test	Lumens/Watt @ Current - Test
Broadcom Limited ASMT-MB00-NDF00	3.6 V	480 nm	470 nm	460 nm	DPAK (2 Leads + Tab) SC-63 TO-252-3	3.4 mm	0.134 in	10 °C/W	Blue	Surface Mount	120 °	0.335 "	8.5 mm	0.335 in	8.5 mm	350 mA	19 lm	350 mA	15 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Moonstone™ Blue 470nm (460nm ~ 480nm) TO-252-3, DPAK (2 Leads + Tab), SC-63
