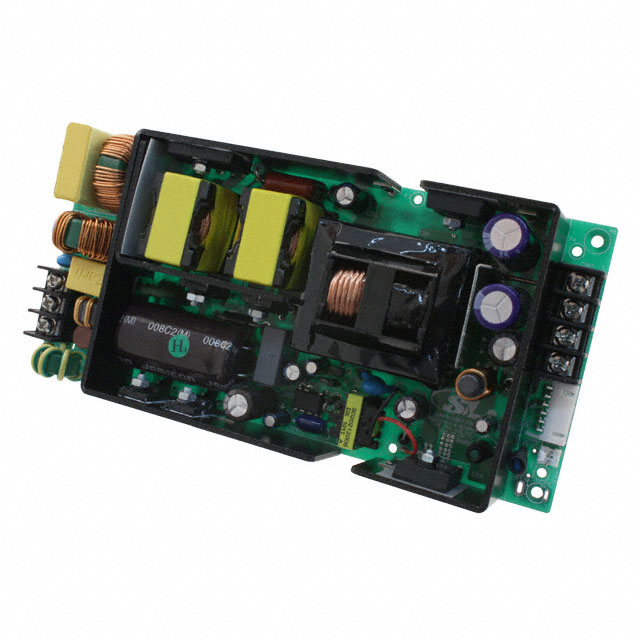

MINT2270A1976E02

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 24V 270W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 24V 270W

Technical Specifications

Parameters and characteristics for this part

Specification	MINT2270A1976E02

Applications	Medical
Approval Agency	cURus, DEMKO, CE
Current - Output 1	200 mA
Current - Output 2	11.3 A
Efficiency	90 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	270 W
Size / Dimension [x]	7.17 in
Size / Dimension [x]	182 mm
Size / Dimension [y]	3.35 in
Size / Dimension [y]	85 mm
Size / Dimension [z]	1.17 in
Size / Dimension [z]	29.6 mm
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Output 2	Type	Approval Agency	Voltage - Output 1	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 2	Minimum Load Required	Features	Efficiency	Number of Outputs	Mounting Type
SL POWER / Advanced Energy MINT2270A1976E02	1.17 in	3.35 in	85 mm	7.17 in	182 mm	29.6 mm	Medical	24 V	Open Frame	CE cURus DEMKO	5 V	200 mA	70 °C	0 °C	270 W	4000 V	240 VAC	100 VAC	11.3 A		Adjustable Output Remote On/Off Remote Sense	90 %	2	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 155.74

General part information

Open Frame AC DC Converters 2 Output 5V 24V 100 ~ 240 VAC Input
