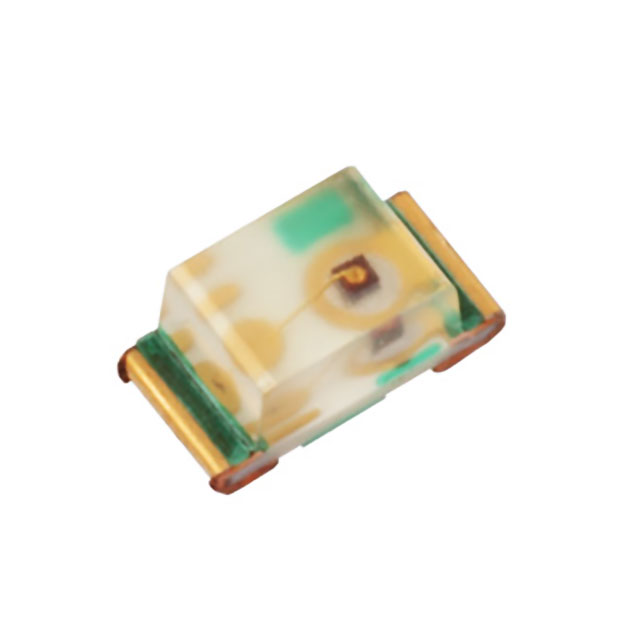

VFHR1111C-3BY2A-TR
ActiveStanley Electric Co
LED RED DIFFUSED 1608 SMD
Deep-Dive with AI
Search across all available documentation for this part.
VFHR1111C-3BY2A-TR
ActiveStanley Electric Co
LED RED DIFFUSED 1608 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFHR1111C-3BY2A-TR |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | White |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 1608 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 626 nm |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.08 | |||
| 12000 | $ 0.07 | |||
| 28000 | $ 0.07 | |||
| 100000 | $ 0.06 | |||
Description
General part information
VFHR1111 Series
Red 626nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
