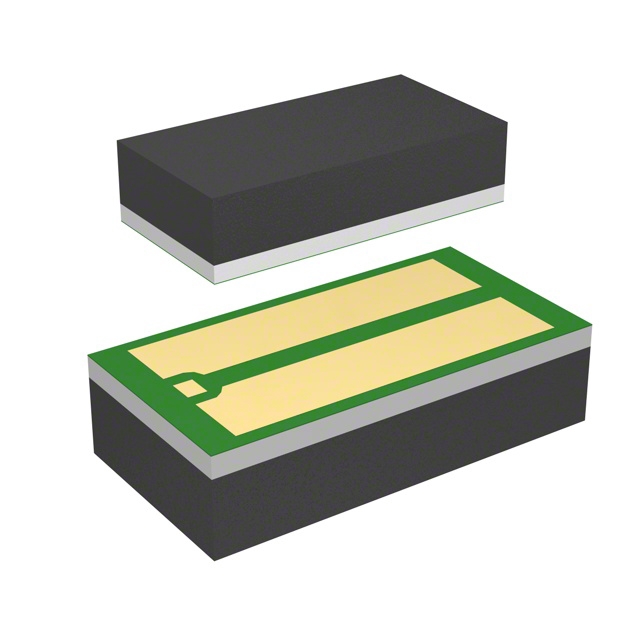

PI5101-01-LGIZ

Obsolete

Vicor Corporation

MOSFET N-CH 5V 60A 3LGA

Search across all available documentation for this part.

Obsolete

Vicor Corporation

MOSFET N-CH 5V 60A 3LGA

Technical Specifications

Parameters and characteristics for this part

Specification	PI5101-01-LGIZ

Current - Continuous Drain (Id) @ 25°C	60 A
Drain to Source Voltage (Vdss)	5 V
Drive Voltage (Max Rds On, Min Rds On)	3.5 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	65 nC
Input Capacitance (Ciss) (Max) @ Vds	7600 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-FLGA
Power Dissipation (Max)	3.1 W
Rds On (Max) @ Id, Vgs [Max]	0.45 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	5 V
Vgs(th) (Max) @ Id	800 mV

Part	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Vgs(th) (Max) @ Id	FET Type	Drain to Source Voltage (Vdss)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs [Max]	Technology	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs
Vicor Corporation PI5101-01-LGIZ	-55 °C	150 °C	5 V	800 mV	N-Channel	5 V	Surface Mount	60 A	3-FLGA	7600 pF	3.5 V 4.5 V	0.45 mOhm	MOSFET (Metal Oxide)	3.1 W	65 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 5 V 60A (Ta) 3.1W (Ta) Surface Mount 3-LGA (4.1x8)
