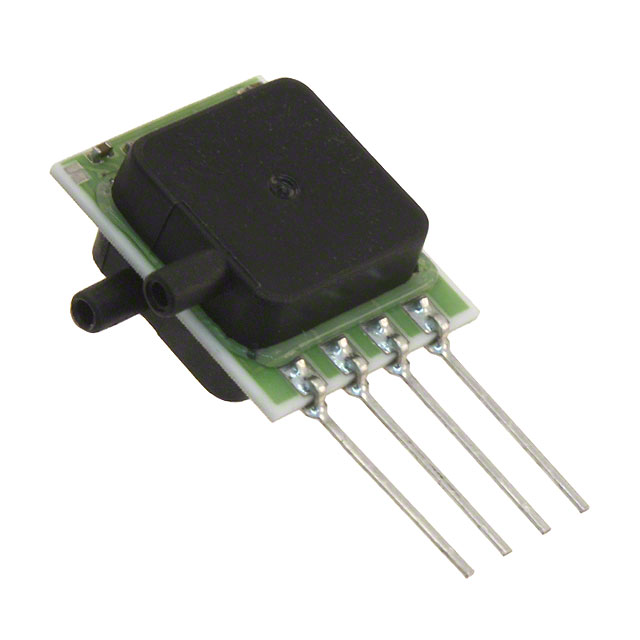

1 INCH-G-P4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.08" 4.25V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.08" 4.25V

Technical Specifications

Parameters and characteristics for this part

Specification	1 INCH-G-P4V-MINI

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	7.23 PSI
Maximum Pressure [Max]	49.83 kPa
Mounting Type	Through Hole
Operating Pressure [custom]	0.04 PSI
Operating Pressure [custom]	0.25 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.25 V
Output [Min]	0.25 V
Output Type	Analog Voltage
Package / Case	4-SIP Module
Port Size [x]	2.03 mm
Port Size [x]	0.08 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Port Size [x]	Port Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Output [Min]	Output [Max]	Mounting Type	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Port Style	Accuracy	Termination Style	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications
Amphenol All Sensors Corporation 1 INCH-G-P4V-MINI	2.03 mm	0.08 "	125 °C	-40 °C	4-SIP Module	Analog Voltage	0.25 V	4.25 V	Through Hole	0.04 PSI	0.25 kPa	7.23 PSI	49.83 kPa	Amplified Output Temperature Compensated	Barbless	0.25 %	PC Pin	Vented Gauge	4.5 V	5.5 V	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 53.26

General part information

Pressure Sensor 0.04PSI (0.25kPa) Vented Gauge Male - 0.08" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module
