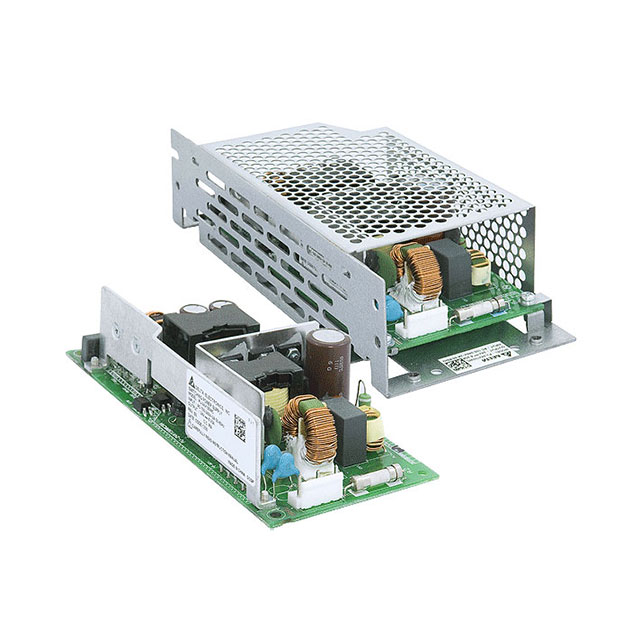

PJ-12V150WBRA

Active

Delta Electronics

AC/DC CONVERTER 12V 150W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-12V150WBRA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	12.5 A
Efficiency	91 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	2.95 in
Size / Dimension [y]	75 mm
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power (Watts)	Voltage - Output 1	Applications	Number of Outputs	Efficiency	Features	Voltage - Isolation	Current - Output 1	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency
Delta Electronics PJ-12V150WCNA	-10 °C	70 °C	Conformal Coated Enclosed	150 W	12 V	ITE (Commercial)	1	91 %	Adjustable Output PFC Universal Input	3000 V	12.5 A	Chassis Mount	3.35 in	1.85 in	188 mm	47 mm	85 mm	7.4 "	CB CE cURus TUV
Delta Electronics PJ-12V150WBRA	-10 °C	70 °C	Open Frame	150 W	12 V	ITE (Commercial)	1	91 %	Adjustable Output PFC Remote On/Off Universal Input	3000 V	12.5 A	Chassis Mount	2.95 in	1.46 "	160 mm	37 mm	75 mm	6.3 "	CB CE cURus TUV
Delta Electronics PJ-12V150WCRA	-10 °C	70 °C	Enclosed	150 W	12 V	ITE (Commercial)	1	91 %	Adjustable Output PFC Remote On/Off Universal Input	3000 V	12.5 A	Chassis Mount	3.35 in	1.85 in	188 mm	47 mm	85 mm	7.4 "	CB CE cURus TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 50.64
