ST-DB9-M-R-FT
ActiveSchmalzTech, LLC

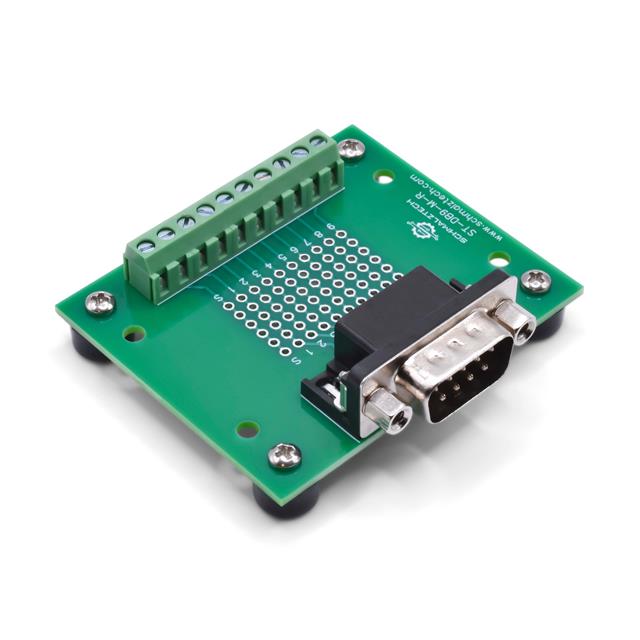

DB9 MALE BREAKOUT BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST-DB9-M-R-FT
ActiveSchmalzTech, LLC
DB9 MALE BREAKOUT BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-DB9-M-R-FT |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 9 |
| Package Accepted | DB9 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Connector to Terminal Block |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 60.96 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.99 | |
| 20 | $ 12.99 | |||
| 100 | $ 11.99 | |||
Description
General part information
ST-DB9 Series
DB9 MALE BREAKOUT BOARD
Documents
Technical documentation and resources
