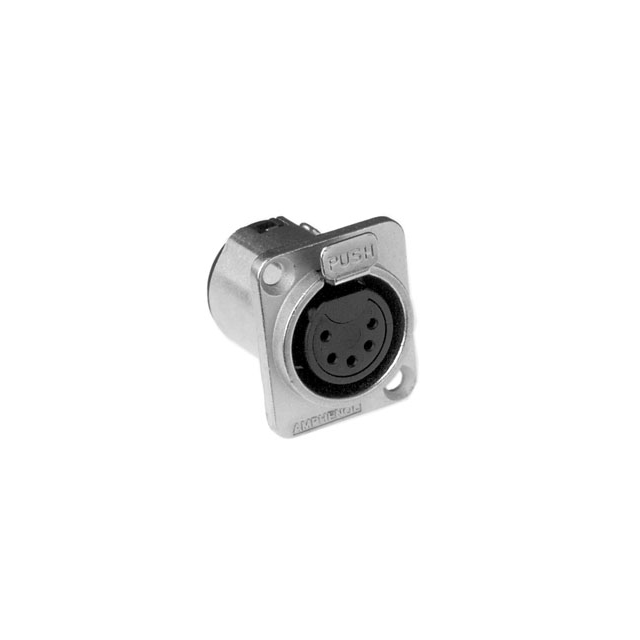

AC5FDZ BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 SKT BULK

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 SKT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	AC5FDZ BULK

Applications	Audio
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Latch Lock
Features	Ground
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

Part	Shielding	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Backshell Material, Plating	Material Flammability Rating	Shell Size - Insert	Orientation	Shell Material	Contact Material	Current Rating (Amps)	Ingress Protection	Fastening Type	Shell Finish	Primary Material	Applications	Color	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Feature	Insert Material
Amphenol Sine Systems Corp AC5F BULK	Unshielded	Backshell Cable Clamp	Free Hanging (In-Line)	-25 °C	75 ░C	Silver	Polyphenylene Ether (PPE)	UL94 V-0	XLR	Keyed	Zinc Die Cast	Brass	7.5 A	IP40	Latch Lock	Nickel	Metal	Audio	Silver	Female Sockets Plug
Amphenol Sine Systems Corp AC5FBV-AU-PRE	Unshielded	Board Guide	Panel Mount Through Hole	-25 °C	75 ░C	Gold		UL94 V-0	XLR	Keyed		Bronze	3 A	IP40	Latch Lock		Plastic	Audio	Black Silver	Female Sockets Plug	1.97 Áin	0.05 Ám	Solder	Flange	Glass Filled Nylon 6/6 Polyamide (PA66)
Amphenol Sine Systems Corp AC5FDZB BULK	Unshielded			-25 °C	75 ░C	Silver		UL94 V-0	XLR	Keyed	Zinc Die Cast	Brass	7.5 A	IP40	Latch Lock	Black	Metal	Audio	Black	Female Sockets Plug				Flange	Glass Filled Nylon 6/6 Polyamide (PA66)
Amphenol Sine Systems Corp AC5FDZ BULK	Shielded	Ground		-25 °C	75 ░C	Silver		UL94 V-0	XLR	Keyed	Zinc Die Cast	Brass	7.5 A	IP40	Latch Lock	Nickel	Metal	Audio	Silver	Female Sockets Plug				Flange	Glass Filled Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 9.22

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
