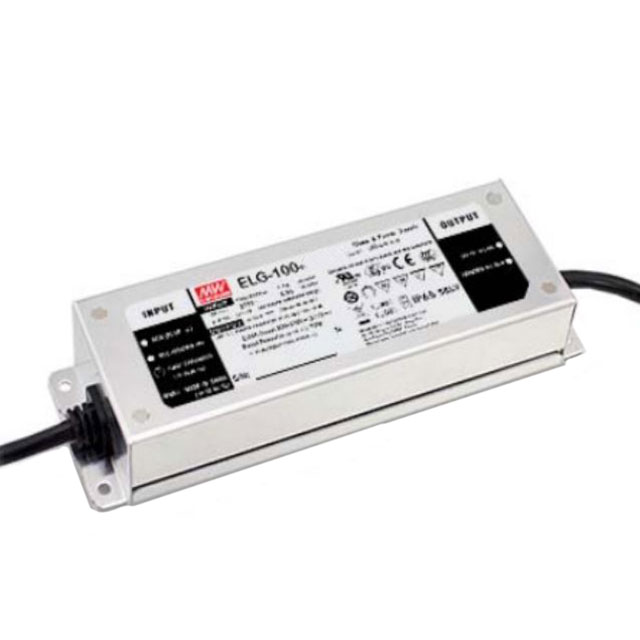

ELG-100-24D2

Active

MEAN WELL USA Inc.

LED AC/DC DRIVER 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELG-100-24D2

Active

MEAN WELL USA Inc.

LED AC/DC DRIVER 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELG-100-24D2

Approval Agency	CB, CCC, CE, cURus, EAC, ENEC, UKCA
Current - Output (Max) [Max]	4 A
Dimming	Analog, PWM
Efficiency	88 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	96 W
Ratings	IP67
Size / Dimension [x]	6.89 in
Size / Dimension [x]	175 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	35.5 mm
Size / Dimension [z]	1.4 "
Standard Number	UL 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output	24 V

ELG-100 Series

Part	Type	Features	Approval Agency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Power (Watts)	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Ratings	Mounting Type	Dimming	Standard Number	Voltage - Output
MEAN WELL USA Inc. ELG-100-C700DA	Constant Current	OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	1	-40 °C	90 °C	Wire Leads	100 W	3750 V	100 VAC	305 VAC	700 mA	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %	143 V	71 V	AC DC Converter	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-24D2	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC UKCA	1	-40 °C	90 °C	Wire Leads	96 W	3750 V	100 VAC	305 VAC	4 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	88 %			AC DC Converter	IP67	Chassis Mount	Analog PWM	UL 8750	24 V
MEAN WELL USA Inc. ELG-100-C700B-3Y	Constant Current	OTP OVP SCP	CB CCC CE cURus EAC ENEC KC RCM	1	-40 °C	90 °C	Wire Leads	100 W	3750 V	100 VAC	305 VAC	700 mA	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %	143 V	71 V	AC DC Converter	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-48A-3Y	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC UKCA	1	-40 °C	90 °C	Wire Leads	96 W	3750 V	100 VAC	305 VAC	2 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %			AC DC Converter	IP65	Chassis Mount	Analog PWM	UL 8750	48 V
MEAN WELL USA Inc. ELG-100-C1050	Constant Current	OTP OVP SCP	CB CCC CE cURus ENEC	1	-40 °C	90 °C	Wire Leads	100 W	3750 V	100 VAC	305 VAC	1.05 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %	85 V	48 V	AC DC Converter	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-C700D2-3Y	Constant Current	OTP OVP SCP	CB CCC CE cURus EAC ENEC KC RCM	1	-40 °C	90 °C	Wire Leads	100 W	3750 V	100 VAC	305 VAC	700 mA	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %	143 V	71 V	AC DC Converter	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-24D2-3Y	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC UKCA	1	-40 °C	90 °C	Wire Leads	96 W	3750 V	100 VAC	305 VAC	4 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	88 %			AC DC Converter	IP67	Chassis Mount	Analog PWM	UL 8750	24 V
MEAN WELL USA Inc. ELG-100-C500A-3Y	Constant Current	OTP OVP SCP	CB CCC CE cURus EAC ENEC KC RCM	1	-40 °C	90 °C	Wire Leads	100 W	3750 V	100 VAC	305 VAC	500 mA	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	91 %	200 V	100 V	AC DC Converter	IP65	Chassis Mount
MEAN WELL USA Inc. ELG-100-C1400D2	Constant Current	OTP OVP SCP	CB CCC CE cURus EAC ENEC KC RCM	1	-40 °C	90 °C	Wire Leads	101 W	3750 V	100 VAC	305 VAC	1.4 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %	72 V	35 V	AC DC Converter	IP67	Chassis Mount
MEAN WELL USA Inc. ELG-100-48AB-3Y	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC UKCA	1	-40 °C	90 °C	Wire Leads	96 W	3750 V	100 VAC	305 VAC	2 A	63 mm	2.48 in	35.5 mm	1.4 "	6.89 in	175 mm	90 %			AC DC Converter	IP65	Chassis Mount	Analog PWM	UL 8750	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 45.69

Description

General part information

ELG-100 Series

4A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
