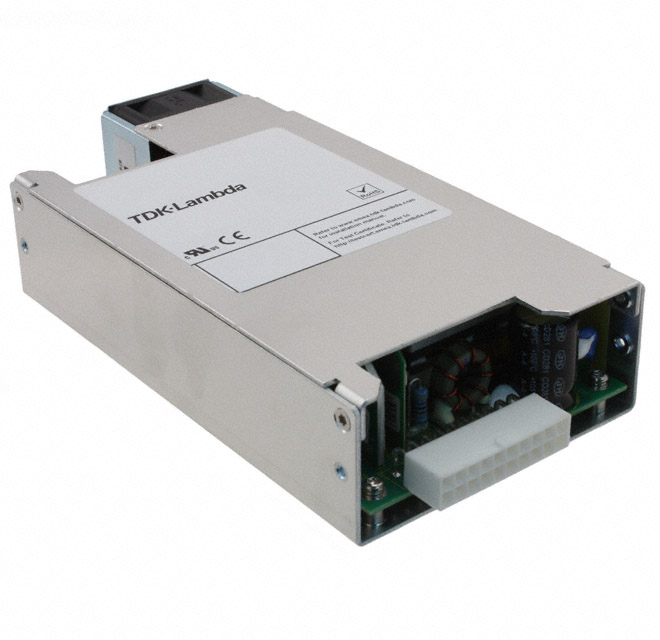

U6Y009R

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 400W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	U6Y009R

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	8.33 A
Efficiency	90 %
Features	Remote On/Off, Universal Input, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	196 mm
Size / Dimension [x]	7.72 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	40.5 mm
Size / Dimension [z]	1.57 "
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Efficiency	Approval Agency	Features	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Type	Number of Outputs
TDK-LAMBDA U6Y009R	90 %	CE	Remote On/Off Standby Output Universal Input	ITE (Commercial) Medical	40.5 mm	3.82 in	97 mm	1.57 "	196 mm	7.72 "	8.33 A	70 °C	0 °C	Chassis Mount	4000 V	48 V	90 VAC	264 VAC	Enclosed	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
