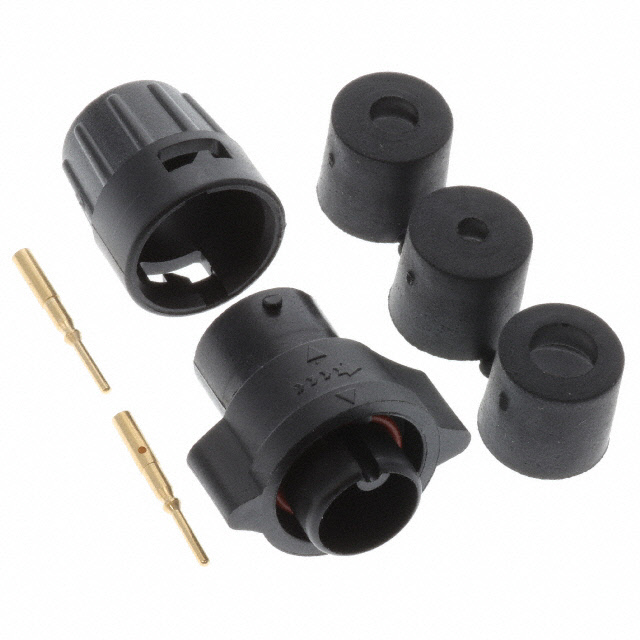

W6282-2PG-P-3DC
ActiveConxall/Switchcraft
CONN PLUG MALE 2POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W6282-2PG-P-3DC
ActiveConxall/Switchcraft
CONN PLUG MALE 2POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W6282-2PG-P-3DC |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, UV Resistant, Backshell |
| Ingress Protection | IP68, IP66, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.97 | |
| 10 | $ 13.84 | |||
| 25 | $ 13.12 | |||
| 50 | $ 12.93 | |||
| 100 | $ 11.41 | |||
| 250 | $ 10.65 | |||
| 500 | $ 10.42 | |||
| 1000 | $ 9.89 | |||
Description
General part information
W6282-2 Series
2 Position Circular Connector Plug, Male Pins Solder Cup
