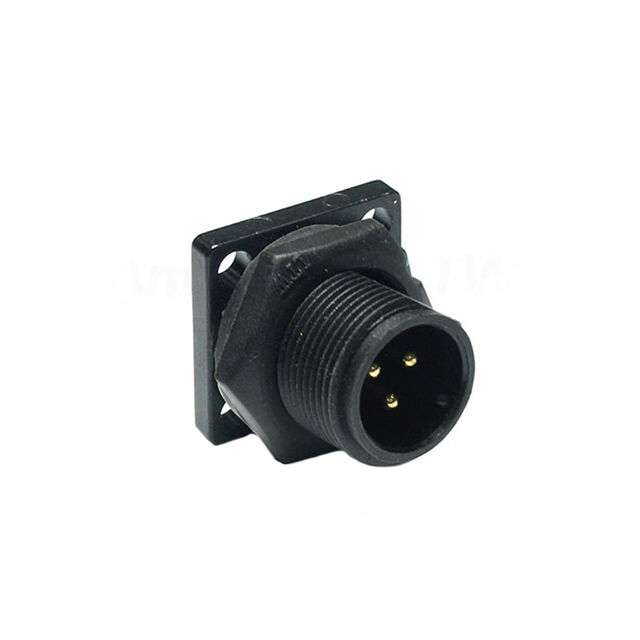

AD-02PMMP-SS7001

Active

Amphenol LTW

CERES, MINI SIZE, 5A, 02 PINS, R

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MINI SIZE, 5A, 02 PINS, R

Technical Specifications

Parameters and characteristics for this part

Specification	AD-02PMMP-SS7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Shell Size - Insert	Termination	Number of Positions	Current Rating (Amps)	Shell Material	Insert Material	Mounting Type	Voltage Rating	Ingress Protection	Orientation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Primary Material	Fastening Type	Mounting Feature	Color	Shielding
Amphenol LTW AD-02PMMP-LC7001	A	Solder	2	5 A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Panel Mount Through Hole	250 VDC	IP67 - Dust Tight Waterproof	Keyed	Copper Alloy	-40 °C	105 ░C	Male Pins Receptacle	Gold	Plastic	Bayonet Lock	Bulkhead - Front Side Nut	Black	Unshielded
Amphenol LTW AD-02PMMP-SS7001	A	Solder	2	5 A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Panel Mount Through Hole	250 VDC	IP67 - Dust Tight Waterproof	Keyed	Copper Alloy	-40 °C	105 ░C	Male Pins Receptacle	Gold	Plastic		Flange	Black	Unshielded
Amphenol LTW AD-02PMMP-SC7001	A	Solder	2	5 A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Panel Mount Through Hole	250 VDC	IP67 - Dust Tight Waterproof	Keyed	Copper Alloy	-40 °C	105 ░C	Male Pins Receptacle	Gold	Plastic		Bulkhead - Front Side Nut	Black	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.14

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
