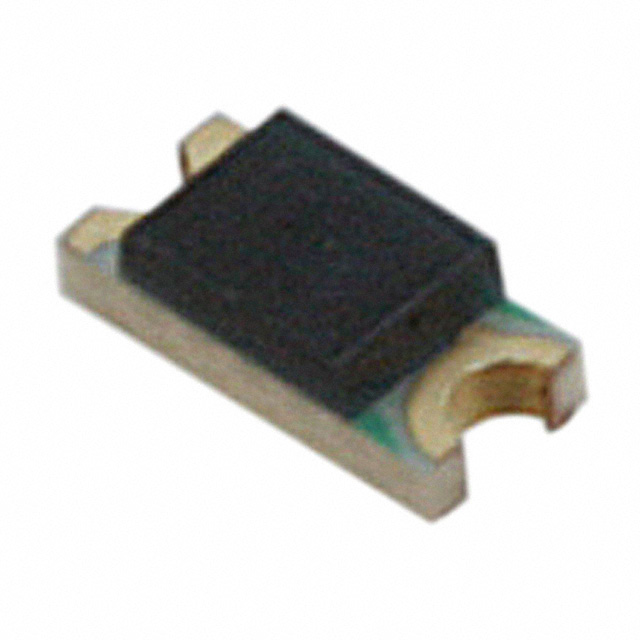

PD15-21B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
PD15-21B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD15-21B/TR8 |
|---|---|
| Current - Dark (Typ) | 10 nA |
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 2-SMD, No Lead |
| Response Time | 6 ns |
| Spectral Range [Max] [custom] | 1100 nm |
| Spectral Range [Min] [custom] | 730 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 32 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 21000 | $ 0.13 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.12 | |||
Description
General part information
PD15-21 Series
Photodiode 940nm 6ns 2-SMD, No Lead
