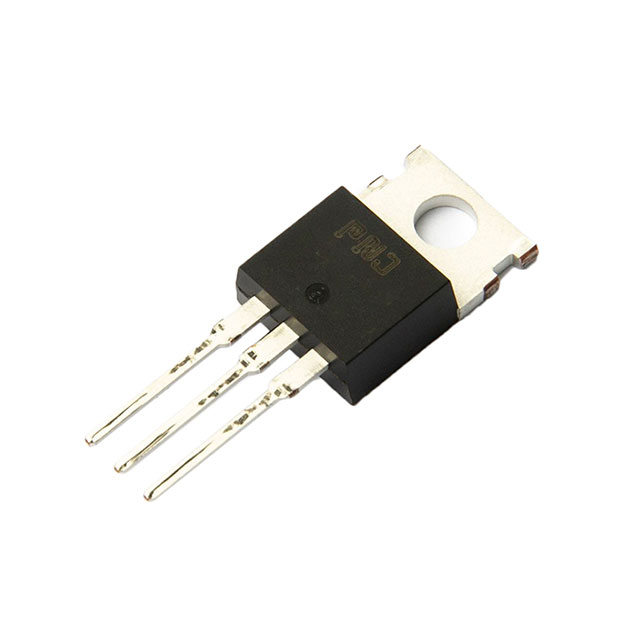

P3M173K0T3

Active

PN Junction Semiconductor

SICFET N-CH 1700V 4A TO-220-3

Search across all available documentation for this part.

Active

PN Junction Semiconductor

SICFET N-CH 1700V 4A TO-220-3

Technical Specifications

Parameters and characteristics for this part

Specification	P3M173K0T3

Current - Continuous Drain (Id) @ 25°C	4 A
Drain to Source Voltage (Vdss)	1700 V
Drive Voltage (Max Rds On, Min Rds On)	15 V
FET Type	N-Channel
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-2
Power Dissipation (Max) [Max]	75 W
Rds On (Max) @ Id, Vgs [Max]	2.6 Ohm
Supplier Device Package	TO-220-2L
Vgs (Max) [Max]	19 V
Vgs (Max) [Min]	-8 V
Vgs(th) (Max) @ Id	2.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 1700 V 4A 75W Through Hole TO-220-2L
