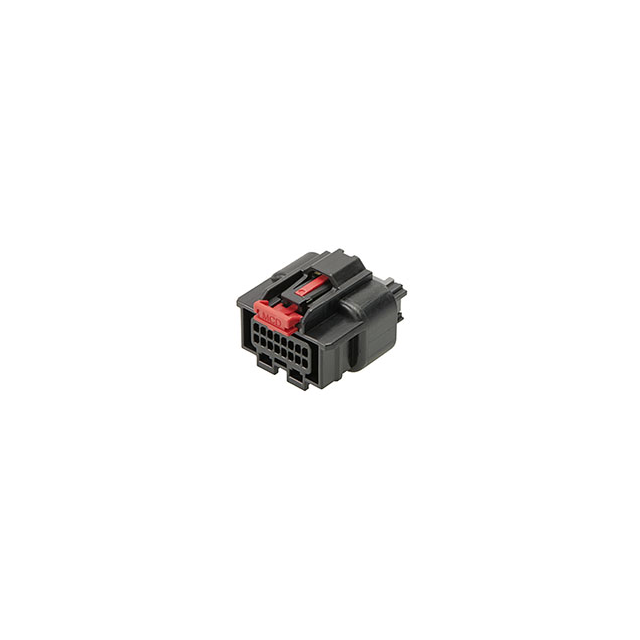

0348948003

Active

Molex

CONN RCPT HSG 16POS 1.80MM

Deep-Dive with AI

Search across all available documentation for this part.

0348948003

Active

Molex

CONN RCPT HSG 16POS 1.80MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348948003

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch [x]	0.071 in
Pitch [x]	1.8 mm

034894 Series

Part	Contact Termination	Number of Positions	Insulation Material	Color	Contact Type	Note	Features	Connector Type	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Fastening Type	Number of Positions	Row Spacing [custom]	Row Spacing [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0348948003	Crimp	16	Glass Filled Nylon Polyamide (PA)	Gray	Female Socket	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock
Molex 0348944012	Crimp		Glass Filled Nylon Polyamide (PA)	Gray	Female Socket	Contacts Not Included	Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8
Molex 0348944006	Crimp		Glass Filled Nylon Polyamide (PA)	Gray	Female Socket		Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8	2.06 mm	0.081 in	125 °C	-40 °C
Molex 0348944005	Crimp		Glass Filled Nylon Polyamide (PA)	Black	Female Socket		Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8	2.06 mm	0.081 in	125 °C	-40 °C
Molex 0348944002	Crimp		Glass Filled Nylon Polyamide (PA)	Gray	Female Socket	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8
Molex 0348944008	Crimp		Glass Filled Nylon Polyamide (PA)	Gray	Female Socket		Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8	2.06 mm	0.081 in	125 °C	-40 °C
Molex 0348944001	Crimp		Glass Filled Nylon Polyamide (PA)	Black	Female Socket	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8
Molex 0348948002	Crimp	16	Glass Filled Nylon Polyamide (PA)	Gray	Female Socket	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock
Molex 0348944009	Crimp		Glass Filled Nylon Polyamide (PA)	Black	Female Socket	Contacts Not Included	Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock	8
Molex 0348948005	Crimp	16	Glass Filled Nylon Polyamide (PA)	Black	Female Socket		Connector Position Assurance (CPA) Sealed	Receptacle	2	Free Hanging (In-Line)	0.071 in	1.8 mm	Latch Lock		2.06 mm	0.081 in	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.49
		10	$ 0.37
		25	$ 0.33
		50	$ 0.30
		100	$ 0.28
		250	$ 0.25
		500	$ 0.24
		1000	$ 0.22
		2500	$ 0.20

Description

General part information

034894 Series

16 Rectangular Connectors - Housings Receptacle Gray 0.071" (1.80mm)
