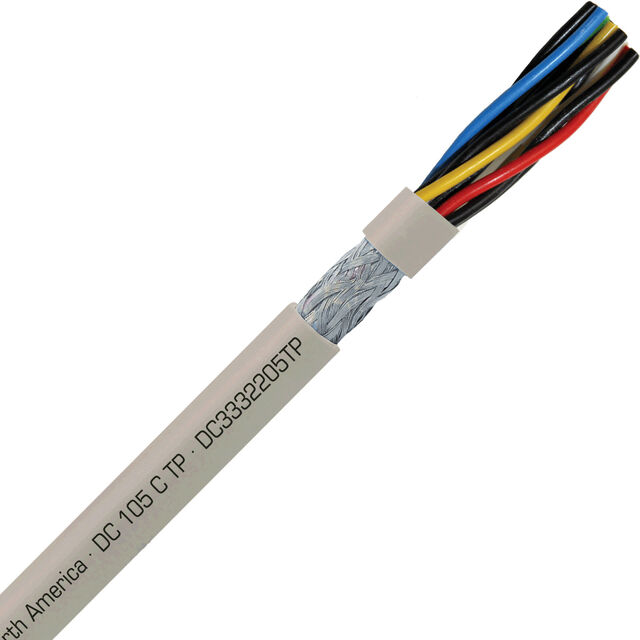

DC3332205TP

Active

SAB North America

MULT-PAIR 10COND 22AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULT-PAIR 10COND 22AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332205TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.46 mm
Jacket (Insulation) Diameter [diameter]	0.333 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Conductor Insulation	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Wire Gauge	Cable Type	Jacket (Insulation) Material	Shield Material	Length	Shield Type
SAB North America DC3332205TP	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	7	30 AWG	10	Gray	-25 °C	105 ░C	8.46 mm	0.333 in	Oil Resistant	22 AWG	Multi-Pair	Poly-Vinyl Chloride (PVC)	Copper Tinned	Enter Number of Feet in Order Quantity	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (5 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
