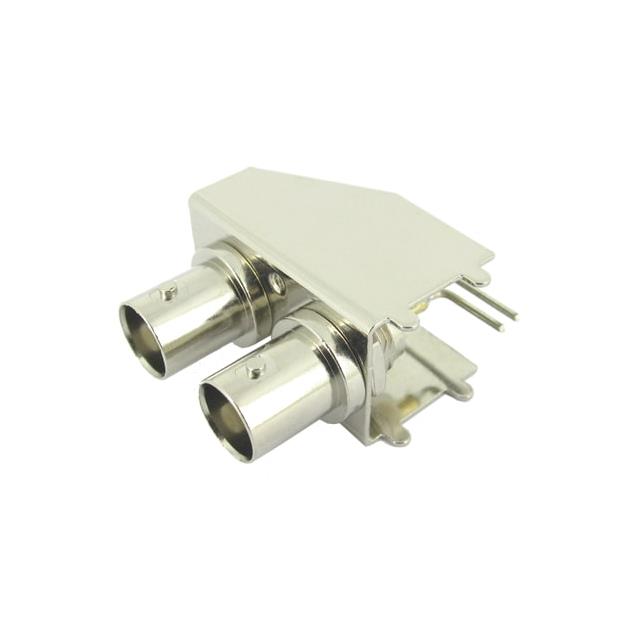

SCNBN-J2150-SORPM
ActiveSuntsu Electronics, Inc
DUAL BNC JACK PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNBN-J2150-SORPM
ActiveSuntsu Electronics, Inc
DUAL BNC JACK PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCNBN-J2150-SORPM |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 2 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.77 | |
| 10 | $ 5.92 | |||
| 50 | $ 5.01 | |||
| 100 | $ 4.76 | |||
| 500 | $ 4.55 | |||
Description
General part information
SCNBN-J2150 Series
BNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
