C12PC,GY

Active

Serpac

BOX ABS GRAY 3.75"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 3.75"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	C12PC,GY

Area (L x W) [custom]	9 in²
Area (L x W) [custom]	58.1 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	95.25 mm
Size / Dimension [x]	3.75 in
Size / Dimension [y]	60.96 mm
Size / Dimension [y]	2.4 "
Thickness	0.09 in
Thickness	2.29 mm
Weight	0.084 lb
Weight	38.1 g

Part	Features	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Weight	Weight	Design	Height [z]	Height [z]	Color	Thickness	Thickness	Container Type
Serpac C12PC,GY	Pocket Clip	9 in²	58.1 cm²	IP40	UL94 HB	95.25 mm	60.96 mm	3.75 in	2.4 "	Plastic ABS	0.084 lb	38.1 g	Hand Held Split Sides	1 in	25.4 mm	Gray	0.09 in	2.29 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.74

General part information

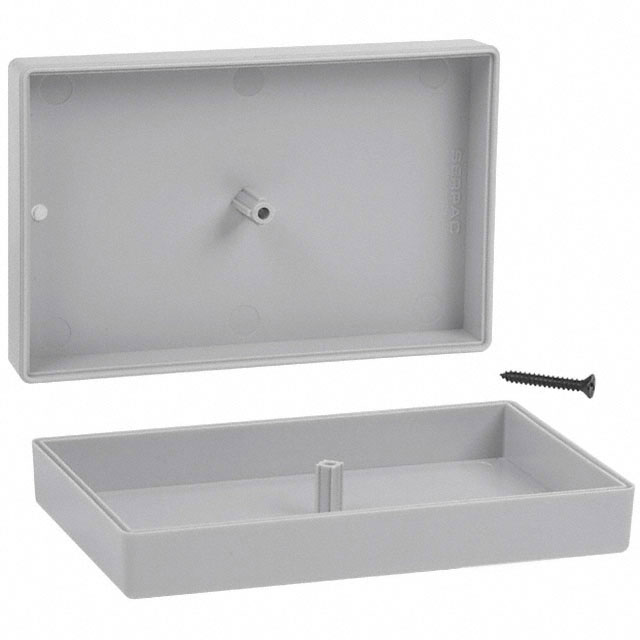

Box Plastic, ABS Gray Hand Held, Split Sides 3.750" L x 2.400" W (95.25mm x 60.96mm) X 1.000" (25.40mm)

Technical documentation and resources

No documents available
