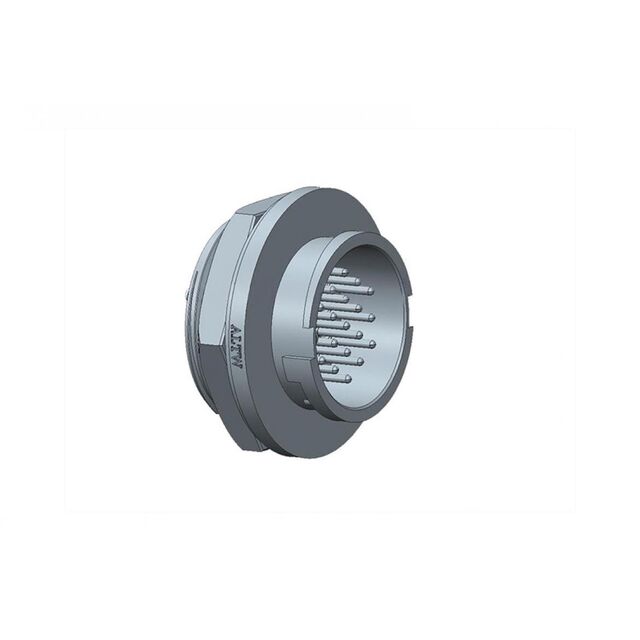

ADC-05RMMS-LC7001
ActiveAmphenol LTW
LARGE STAMPING PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC-05RMMS-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Finish | Nickel |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.71 | |
| 10 | $ 6.07 | |||
| 30 | $ 5.74 | |||
| 50 | $ 5.60 | |||
| 100 | $ 5.32 | |||
| 250 | $ 4.76 | |||
| 500 | $ 4.48 | |||
| 1000 | $ 3.92 | |||
| 2500 | $ 3.72 | |||
Description
General part information
ADC-05RMMS Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
