8AS264-MT
ObsoleteHoneywell Sensing and Productivity Solutions

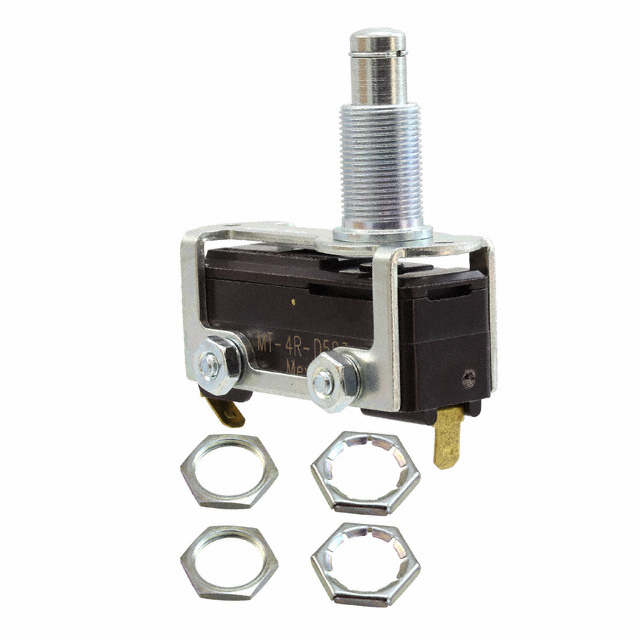

SWITCH SNAP ACTION SPDT 15A 250V
Deep-Dive with AI
Search across all available documentation for this part.
8AS264-MT
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8AS264-MT |
|---|---|
| Actuator Type | Overtravel Plunger |
| Circuit | SPDT |
| Current Rating (Amps) | 15 A |
| Operating Position | 27.8 mm |
| Operating Position | 1.094 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8AS264 Series
Switch SPDT Panel Mount
Documents
Technical documentation and resources
No documents available
