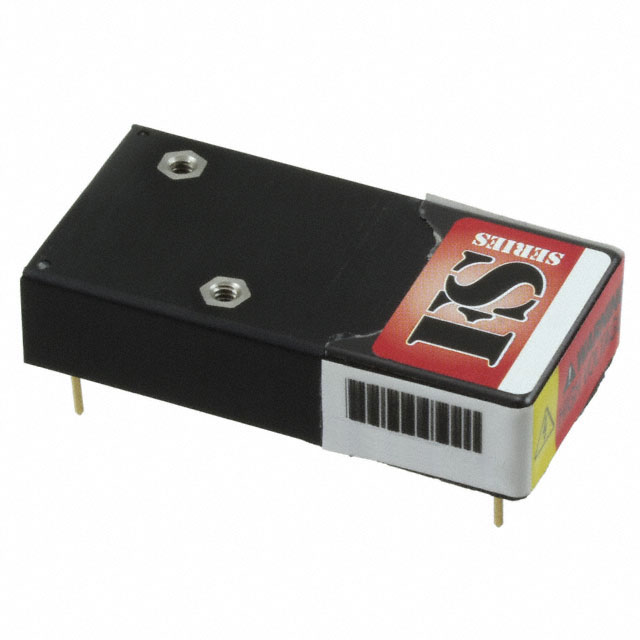

FS02CT-15

Active

XP POWER

DC DC CONVERTER +/-100V 10W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-100V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	FS02CT-15

Applications	ITE (Commercial)
Current - Output (Max)	50 mA
Current - Output (Max)	50 mA
Efficiency	85 %
Features	Proportional Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Package / Case	8-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2.25 in
Size / Dimension [x]	57.2 mm
Size / Dimension [y]	1.12 in
Size / Dimension [y]	28.5 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Type	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	15 V
Voltage - Input (Min) [Min]	0.7 V
Voltage - Isolation	2500 V
Voltage - Output 1	100 V
Voltage - Output 2	-100 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Type	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Isolation	Mounting Type	Number of Outputs	Voltage - Output 2	Voltage - Output 1	Power (Watts)
XP POWER FS02CT-15	0.5 in	1.12 in	2.25 in	57.2 mm	12.7 mm	28.5 mm	ITE (Commercial)	High Voltage - Isolated Module	50 mA	50 mA	Proportional Output	15 V	0.7 V	8-DIP Module	-25 °C	75 ░C	85 %	2500 V	Through Hole	2	-100 V	100 V	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Isolated Module DC DC Converter 2 Output 100V -100V 50mA, 50mA 0.7V - 15V Input
