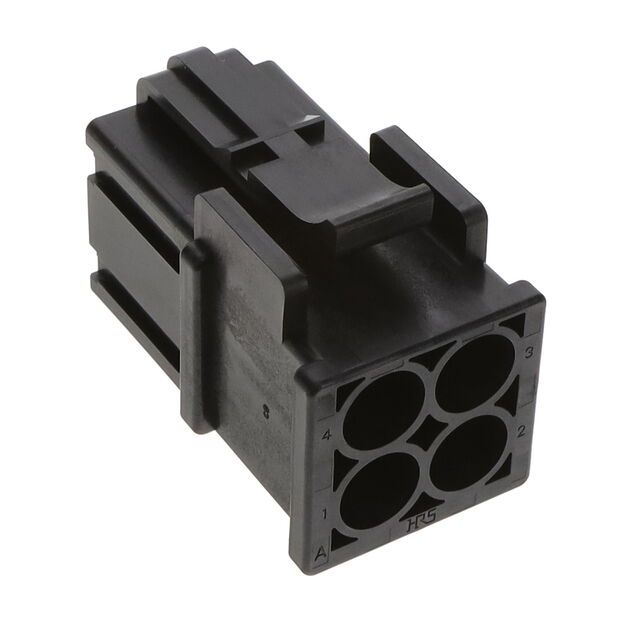

EM35MP-4PC(81)

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	EM35MP-4PC(81)

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Mounting Type	Fastening Type	Insulation Material	Connector Type	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Note	Number of Rows	Color
Hirose Electric USA, Inc. EM35MP-4SC(81)	Free Hanging (In-Line)	Latch Lock	Polybutylene Terephthalate (PBT)	Plug	Female Socket	4	125 °C	-40 °C	Crimp	Contacts Not Included	2	Black
Hirose Electric USA, Inc. EM35MP-4SC	Free Hanging (In-Line)	Latch Lock	Polybutylene Terephthalate (PBT)	Plug	Female Socket	4	125 °C	-40 °C	Crimp	Contacts Not Included		Black
Hirose Electric USA, Inc. EM35MP-4PC(81)	Free Hanging (In-Line)	Latch Lock	Polybutylene Terephthalate (PBT)	Plug	Male Pin	4	125 °C	-40 °C	Crimp	Contacts Not Included	2	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black
