XM1110 DEV KIT_6001187

Obsolete

Semtech Corporation

XM1110 AIRPRIME DEV KIT

Search across all available documentation for this part.

Obsolete

Semtech Corporation

XM1110 AIRPRIME DEV KIT

Technical Specifications

Parameters and characteristics for this part

Specification	XM1110 DEV KIT_6001187

For Use With/Related Products	XM1110, MT3333
Supplied Contents	Board(s)
Type	GPS, GLONASS, Beidou, GNSS

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Data Interface	Modulation or Protocol	Current - Receiving	Sensitivity	Applications	Mounting Type	Antenna Connector	Frequency [Min]	Frequency	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Supplied Contents	For Use With/Related Products	Type	Data Rate (Max)
Semtech Corporation XM1110_1103586	20-QFN	85 °C	-40 °C	3.3 V	I2C SPI	GLONASS GPS	28 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz
Semtech Corporation XM1110_1103886	20-SMD Module	85 °C	-40 °C		I2C SPI UART	GLONASS GPS	32 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V	Module
Semtech Corporation XM1110 DEV KIT_6001187																		Board(s)	MT3333 XM1110	Beidou GLONASS GNSS GPS
Semtech Corporation XM1110_1103912	Module	85 °C	-40 °C		I2C SPI UART	GLONASS GNSS GPS	30 mA	-165 dBm	General Purpose	Surface Mount	Castellation	1.598 GHz	1.575 GHz	1.605 GHz	4.3 V	3 V					9.6 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.86

General part information

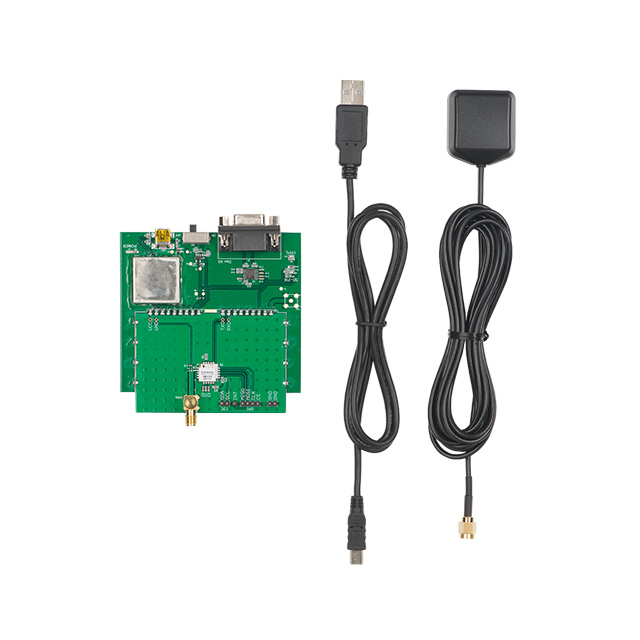

XM - AirPrime® MT3333, XM1110 GNSS (Beidou, GLONASS, GPS) Evaluation Board

Technical documentation and resources
