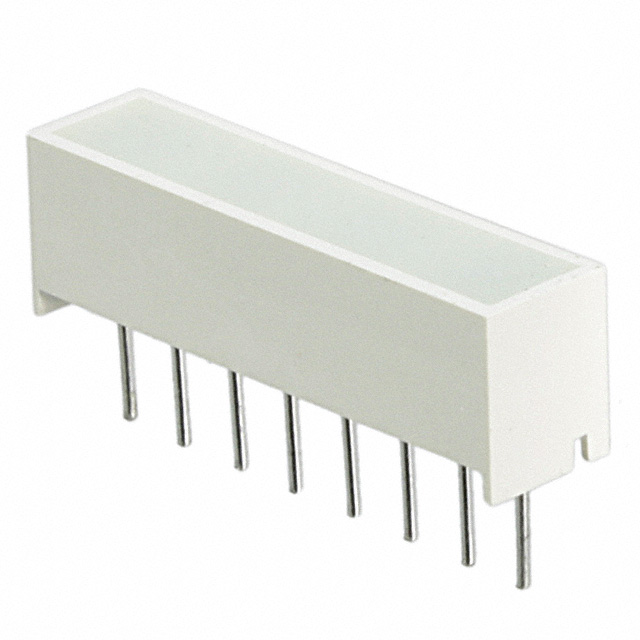

KB-B100SRW

Active

Kingbright

LED LGT BAR 19.05X3.81MM RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KB-B100SRW

Active

Kingbright

LED LGT BAR 19.05X3.81MM RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KB-B100SRW

Color	Red
Configuration	DIP, Bar - Single
Current	30 mA
Lens Size [x]	19.05 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	180 mcd
Mounting Type	Through Hole
Voltage Rating	1.85 V
Wavelength - Peak	660 nm

KB-B100 Series

Part	Color	Millicandela Rating	Voltage Rating	Lens Size [y]	Lens Size [x]	Mounting Type	Wavelength - Peak	Configuration	Current	Lens Type	Lens Style
Kingbright KB-B100SRW	Red	180 mcd	1.85 V	3.81 mm	19.05 mm	Through Hole	660 nm	Bar - Single DIP	30 mA	Diffused White	Rectangle with Flat Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

KB-B100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red Diffused, White 1.85V 30mA Rectangle with Flat Top 19.05mm x 3.81mm Through Hole
