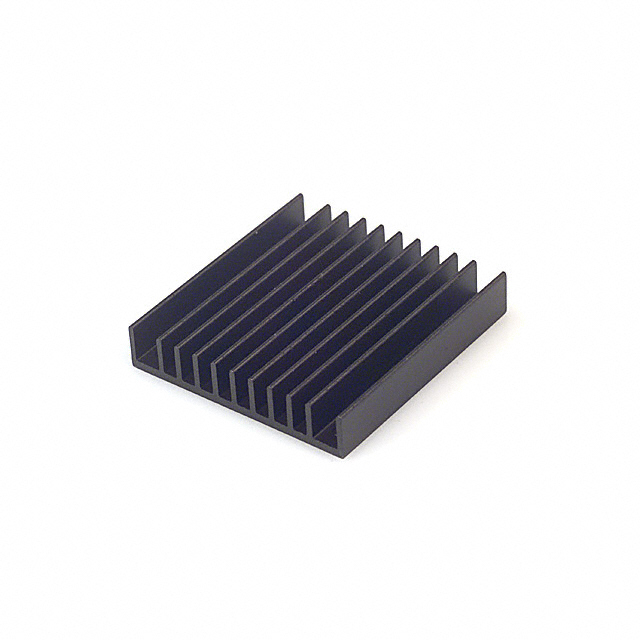

528-45AB

Active

Wakefield-Vette

HEATSINK DC/DC HALF BRICK VERT

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK DC/DC HALF BRICK VERT

Technical Specifications

Parameters and characteristics for this part

Specification	528-45AB

Attachment Method	Bolt On
Fin Height	11.43 mm
Fin Height	0.45 in
Length	2.402 "
Length	61 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	Half Brick DC/DC Converter
Power Dissipation @ Temperature Rise	7 W, 60 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	300 LFM, 3.2 °C/W
Type	Board Level
Width [x]	2.28 in
Width [x]	57.91 mm

Part	Thermal Resistance @ Forced Air Flow	Material	Fin Height	Fin Height	Width [x]	Width [x]	Package Cooled	Material Finish	Attachment Method	Shape	Type	Power Dissipation @ Temperature Rise	Length [x]	Length	Length
Wakefield-Vette 528-45AB-T725	2.1 °C/W 300 LFM	Aluminum	11.43 mm	0.45 in	2.28 in	57.91 mm	Half Brick DC/DC Converter	Black Anodized	Bolt On Thermal Material	Rectangular Fins	Board Level Vertical	7 W 60 °C	2.4 in	60.96 mm
Wakefield-Vette 528-45AB-MET725	2.1 °C/W 300 LFM	Aluminum	11.43 mm	0.45 in	2.28 in	57.91 mm	Half Brick DC/DC Converter	Black Anodized	Bolt On Thermal Material	Rectangular Fins	Board Level Vertical	7 W 60 °C	2.4 in	60.96 mm
Wakefield-Vette 528-45AB	3.2 °C/W 300 LFM	Aluminum	11.43 mm	0.45 in	2.28 in	57.91 mm	Half Brick DC/DC Converter	Black Anodized	Bolt On	Rectangular Fins	Board Level	7 W 60 °C		61 mm	2.402 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Half Brick DC/DC Converter Aluminum 7.0W @ 60°C Board Level
