0008560105
ActiveMolex

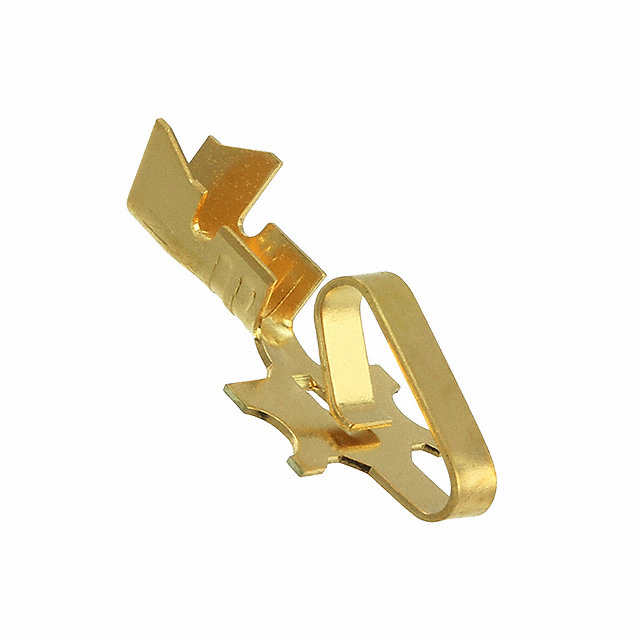

CONN 18-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0008560105
ActiveMolex
CONN 18-24AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0008560105 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.52 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.38 | |||
| Tape & Reel (TR) | 7000 | $ 0.37 | ||
| 14000 | $ 0.34 | |||
Description
General part information
000856 Series
Non-Gendered Contact Gold 18-24 AWG Crimp
