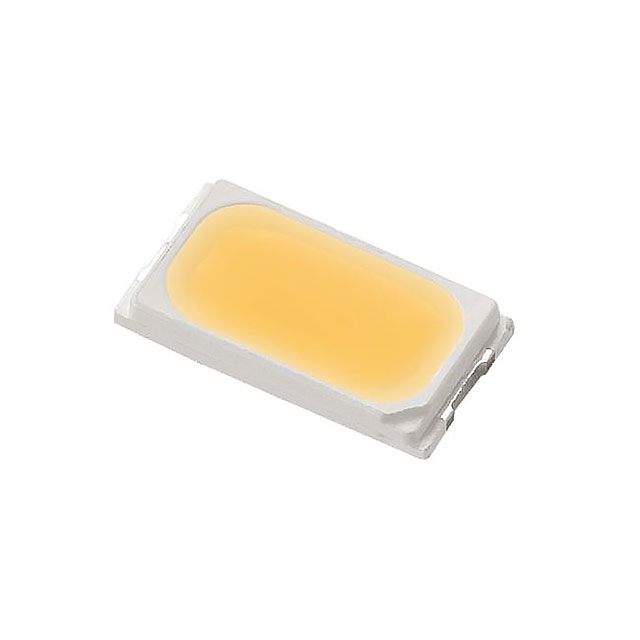

EAHE5630WE53
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5700K 2PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAHE5630WE53
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5700K 2PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAHE5630WE53 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 180 mA |
| Current - Test | 65 mA |
| Flux @ 25°C, Current - Test | 34 lm |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Lumens/Watt @ Current - Test | 190 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 5630 Metric |
| Package / Case | 2212 |
| Size / Dimension [x] | 0.22 in |
| Size / Dimension [x] | 5.6 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 2-PLCC |
| Thermal Resistance of Package [diameter] | 21 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
EAHE5630 Series
LED Lighting - White, Cool 5700K 2.75V 65mA 120° 2212 (5630 Metric)
