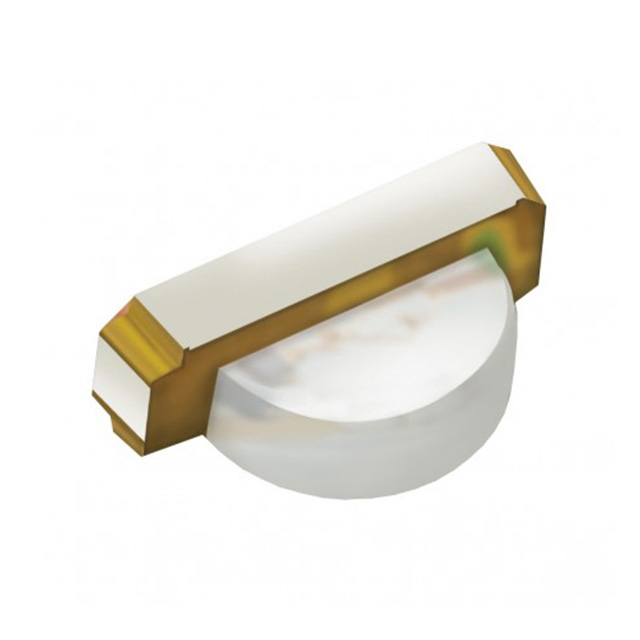

EASV3015RGBA0

Active

Everlight Electronics Co Ltd

LED RGB CLEAR 4SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EASV3015RGBA0

Active

Everlight Electronics Co Ltd

LED RGB CLEAR 4SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EASV3015RGBA0

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	50 mcd, 180 mcd, 90 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	4-SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	3.3 V, 3.3 V, 2 V
Wavelength - Dominant [custom]	624 nm
Wavelength - Dominant [custom]	470 nm
Wavelength - Dominant [custom]	525 nm
Wavelength - Peak [custom]	632 nm
Wavelength - Peak [custom]	518 nm
Wavelength - Peak [custom]	468 nm

EASV3015 Series

Part	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Configuration	Lens Color	Lens Size [x]	Lens Size [y]	Color	Package / Case	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height (Max) [Max] [z]	Lens Style	Wavelength - Dominant	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Everlight Electronics Co Ltd EASV3015RGYA0	4-SMD	1.6 mm	3 mm	20 mA	Common Anode	Clear	2 mm	1 mm	Green Red Yellow	4-SMD No Lead	Surface Mount Right Angle	126 mcd	250 mcd	126 mcd	Clear	2 V 2 V 3.3 V	100 °	1.1 mm	Rectangle with Domed Top	525 nm 589 nm 624 nm	518 nm	632 nm	591 nm
Everlight Electronics Co Ltd EASV3015AGBA0	4-SMD	1.5 mm	3 mm	20 mA 20 mA 20 mA	Common Anode	Colorless	2 mm	1 mm	Blue Green Orange	4-SMD No Lead	Surface Mount Right Angle				Clear		100 °	1.1 mm	Rectangle with Domed Top	470 nm 525 nm 605 nm	518 nm			3.3 V	2 V	3.3 V	611 nm	468 nm	65 mcd 140 mcd 210 mcd
Everlight Electronics Co Ltd EASV3015ICRGBA0	SMD	1 mm	3 mm			White			Blue Green Red		Surface Mount	47 mcd	92 mcd		Diffused		130 °	1.6 mm	Rectangle with Domed Top	470 nm 533 nm 624 nm	518 nm	632 nm		5 V		5 V		468 nm		5 mA	5 mA	5 mA	37 mcd	5 V
Everlight Electronics Co Ltd EASV3015RGBA0	4-SMD	1.5 mm	3 mm		Common Anode	Colorless	2 mm	1 mm	Blue Green Red	4-SMD No Lead	Surface Mount Right Angle				Clear	2 V 3.3 V 3.3 V	100 °	1.1 mm	Rectangle with Domed Top		518 nm	632 nm						468 nm	50 mcd 90 mcd 180 mcd	20 mA	20 mA	20 mA			624 nm	470 nm	525 nm
Everlight Electronics Co Ltd EASV3015WA1	4-SMD	1.5 mm	3 mm	20 mA	Standard	Yellow	2 mm	1 mm	White	4-SMD No Lead	Surface Mount Right Angle				Diffused	3.3 V	110 °	1.1 mm	Rectangle with Domed Top										199 mcd
Everlight Electronics Co Ltd EASV3015WA0	4-SMD	1.5 mm	3 mm	5 mA	Standard	Yellow	2 mm	1 mm	White	4-SMD No Lead	Surface Mount Right Angle				Diffused	3.05 V	110 °	1.1 mm	Rectangle with Domed Top										79 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
		10	$ 0.25
		100	$ 0.14
		1000	$ 0.11
	Digi-Reel®	1	$ 0.41
		10	$ 0.25
		100	$ 0.14
		1000	$ 0.11
	Tape & Reel (TR)	2000	$ 0.15
		4000	$ 0.14
		6000	$ 0.14
		10000	$ 0.13
		14000	$ 0.13
		20000	$ 0.12
		50000	$ 0.12

Description

General part information

EASV3015 Series

Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
