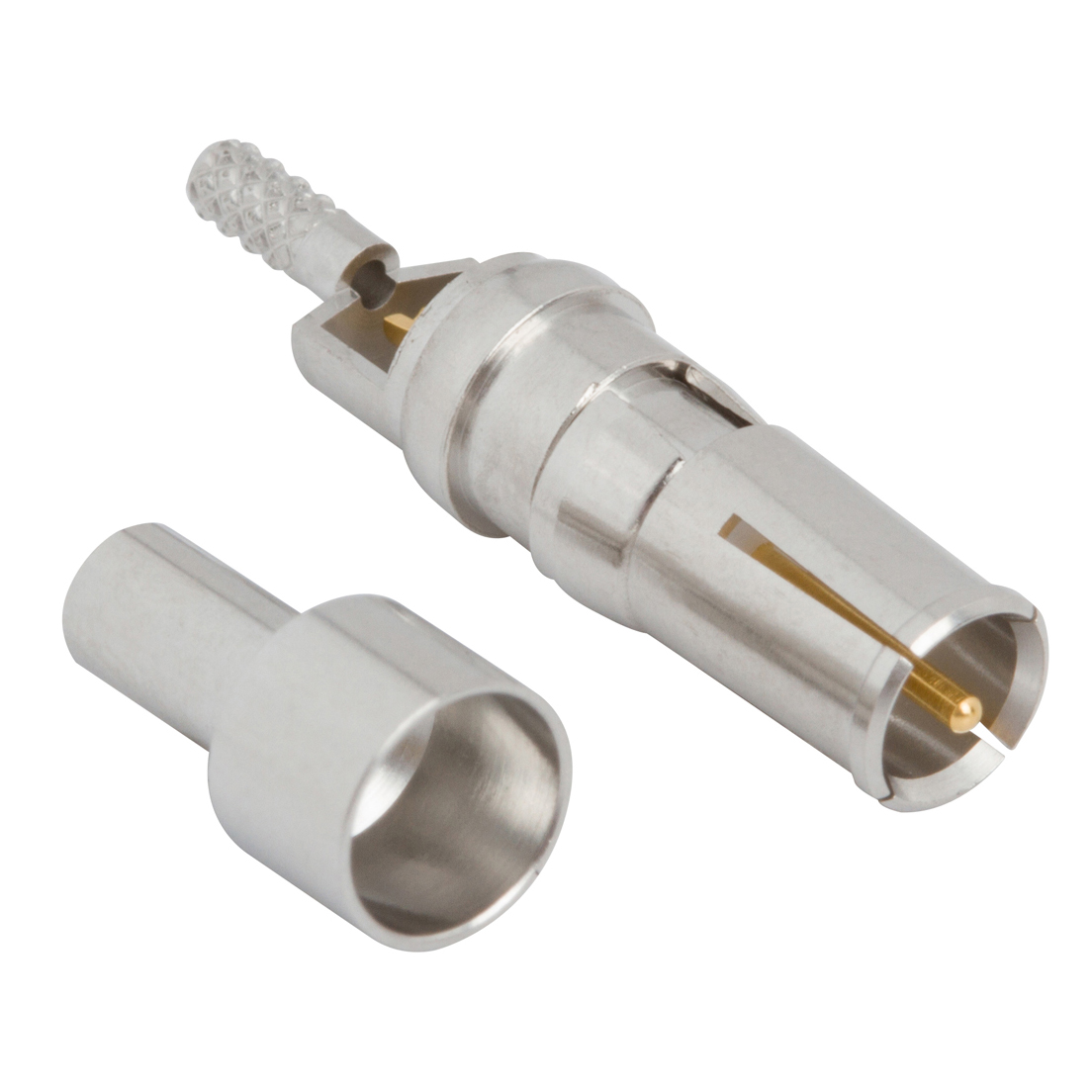

902-NM5808
ActiveAmphenol RF
CONN D-SUB PIN COAX GOLD
Deep-Dive with AI
Search across all available documentation for this part.
902-NM5808
ActiveAmphenol RF
CONN D-SUB PIN COAX GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 902-NM5808 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Form | Stamped |
| Contact Material | Beryllium Copper |
| Contact Termination | Crimp and Solder |
| Contact Type | Male Pin |
| Features | PTFE, Insulator |
| Type | Coaxial |
| Wire Gauge | RG-178 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.23 | |
| 10 | $ 14.93 | |||
| 25 | $ 14.15 | |||
| 50 | $ 13.95 | |||
| 100 | $ 12.31 | |||
| 250 | $ 11.49 | |||
| 500 | $ 11.24 | |||
Description
General part information
902 Series
D-Sub Contact Male Pin Gold RG-178 Crimp and Solder Stamped
Documents
Technical documentation and resources
No documents available
