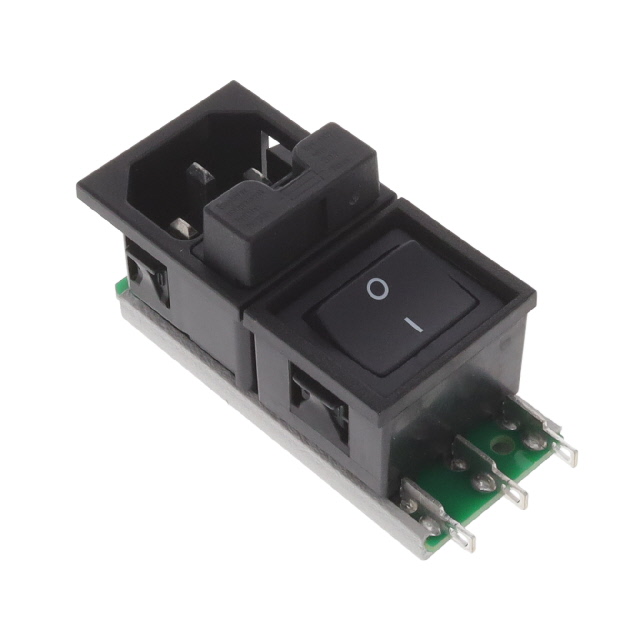

6424.0151.30

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	6424.0151.30

Accomodates a Fuse	True
Approval Agency	UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	57 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Switch Features	Switch On-Off
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Accomodates a Fuse	Termination	Fuse Holder, Drawer	Panel Thickness	Panel Thickness	Material Flammability Rating	Switch Features	Voltage Rating - Appliance Inlet	Connector Type	Current Rating - Appliance Inlet	Connector Style	Filter Type	Mounting Type
SCHURTER Inc. 6424.0151.10	57 mm	27.6 mm	CSA ENEC UL		Solder Eyelet	Fuse Holder	1 mm	0.039 in	UL94 V-0	Switch On-Off	250 VAC	Receptacle Male Blades - Module	10 A	IEC 320-C14	Unfiltered - Commercial	Panel Mount Snap-In
SCHURTER Inc. 6424.0151.30	57 mm	27.6 mm	CSA ENEC UL		Solder Eyelet	Fuse Holder	3 mm	0.118 in	UL94 V-0	Switch On-Off	250 VAC	Receptacle Male Blades - Module	10 A	IEC 320-C14	Unfiltered - Commercial	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
