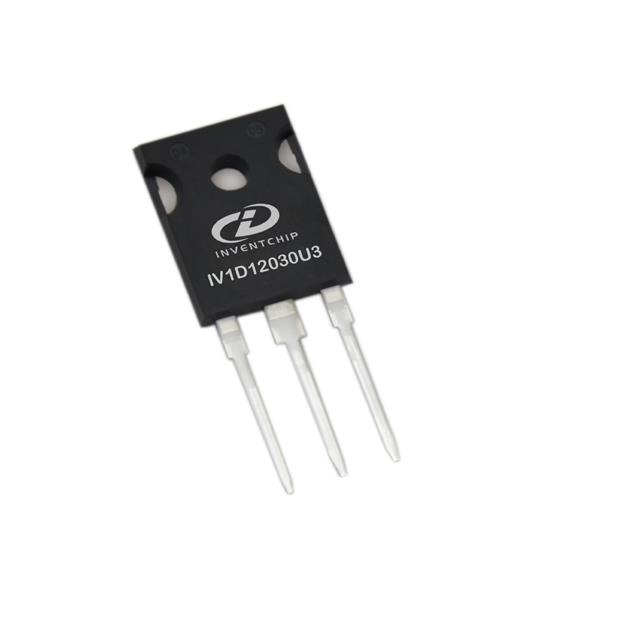

IV1D12030U3
ActiveInventchip
DIODE ARR SIC 1200V 44A TO247-3
Deep-Dive with AI
Search across all available documentation for this part.
IV1D12030U3
ActiveInventchip
DIODE ARR SIC 1200V 44A TO247-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IV1D12030U3 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 44 A |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-3 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | TO-247-3 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 23.39 | |
| 10 | $ 20.79 | |||
| 100 | $ 18.18 | |||
| 500 | $ 15.51 | |||
Description
General part information
IV1D12030U3
Diode Array 1 Pair Common Cathode 1200 V 44A (DC) Through Hole TO-247-3
Documents
Technical documentation and resources
No documents available
