0603BB224K500NGT

Active

Knowles Johanson Manufacturing

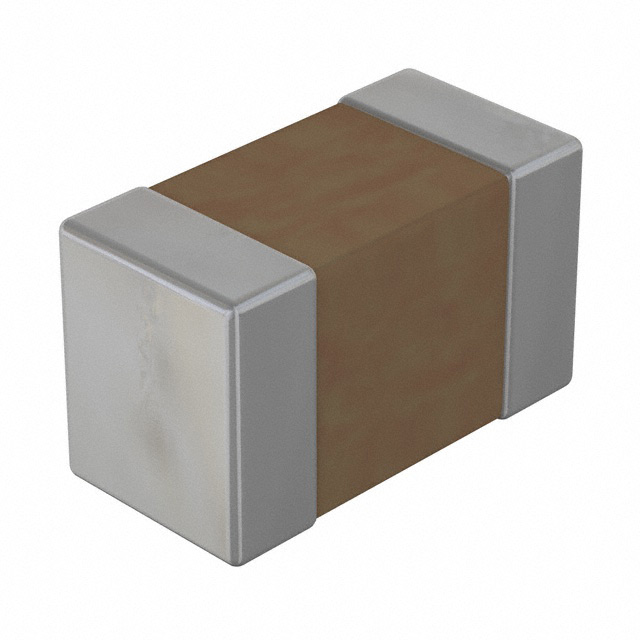

CAP CER 0.22UF 50V X7R 0603

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 0.22UF 50V X7R 0603

Technical Specifications

Parameters and characteristics for this part

Specification	0603BB224K500NGT

Applications	SMPS Filtering
Capacitance	0.22 µF
Features	Bonding Mountable, Gold Flash Termination
Mounting Type	Surface Mount, Epoxy, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.81 mm
Size / Dimension [y]	0.032 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.035 in
Thickness (Max) [Max]	0.89 mm
Tolerance	10 %
Voltage - Rated	50 VDC

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Applications	Voltage - Rated	Tolerance	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Rated [custom]
Knowles Johanson Manufacturing 0603BB104K500YT	0.81 mm	0.032 in	0.063 in	1.6 mm	X7R	SMPS Filtering	50 VDC	10 %	MLCC Surface Mount	0.035 in	0.89 mm	0603 (1608 Metric)	100000 pF	-55 °C	125 °C
Knowles Johanson Manufacturing 0603BB104K500NGT	0.81 mm	0.032 in	0.063 in	1.6 mm	X7R	SMPS Filtering	50 VDC	10 %	Epoxy MLCC Surface Mount	0.035 in	0.89 mm	0603 (1608 Metric)	100000 pF	-55 °C	125 °C	Bonding Mountable Gold Flash Termination
Knowles Johanson Manufacturing 0603BB105K160YT	0.81 mm	0.032 in	0.063 in	1.6 mm	X7R	SMPS Filtering		10 %	MLCC Surface Mount	0.035 in	0.89 mm	0603 (1608 Metric)	1 µF	-55 °C	125 °C		16 V
Knowles Johanson Manufacturing 0603BB224K500YT	0.81 mm	0.032 in	0.063 in	1.6 mm	X7R	SMPS Filtering	50 VDC	10 %	MLCC Surface Mount	0.035 in	0.89 mm	0603 (1608 Metric)	0.22 µF	-55 °C	125 °C
Knowles Johanson Manufacturing 0603BB224K500NGT	0.81 mm	0.032 in	0.063 in	1.6 mm	X7R	SMPS Filtering	50 VDC	10 %	Epoxy MLCC Surface Mount	0.035 in	0.89 mm	0603 (1608 Metric)	0.22 µF	-55 °C	125 °C	Bonding Mountable Gold Flash Termination

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
