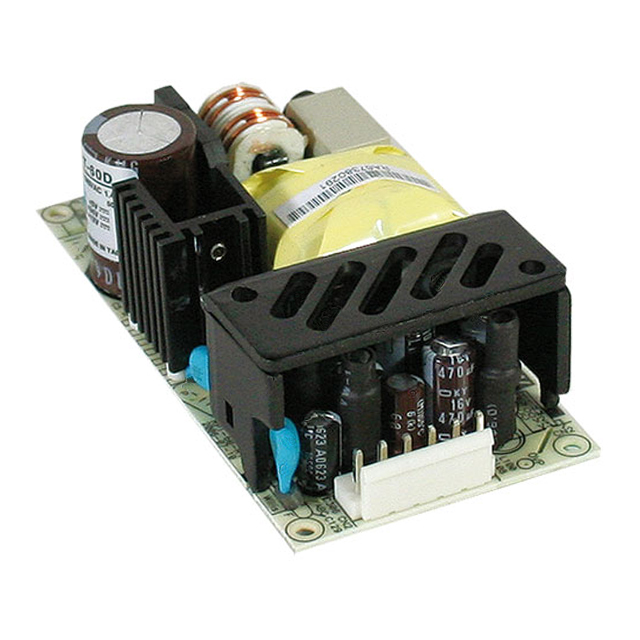

RPT-60D
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 24V 12V 48W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPT-60D
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 24V 12V 48W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPT-60D |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 3.5 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 500 mA |
| Efficiency | 79 % |
| Features | Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 48 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 29 mm, 1.14 in |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.89 | |
| 5 | $ 18.74 | |||
| 10 | $ 18.26 | |||
| 25 | $ 17.65 | |||
Description
General part information
RPT-60 Series
Open Frame AC DC Converters 3 Output 5V 24V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
