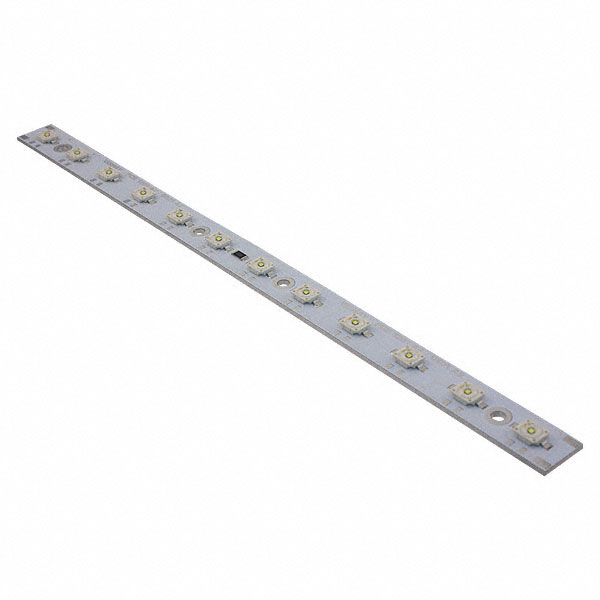

VLPC1201A2J

Obsolete

Vishay General Semiconductor - Diodes Division

LED MOD WH LNR LGT STRIP 7000K

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED MOD WH LNR LGT STRIP 7000K

Technical Specifications

Parameters and characteristics for this part

Specification	VLPC1201A2J

CCT (K) [Max]	7000 K
CCT (K) [Min]	5000 K
Color	Cool, White
Configuration	Linear Light Strip
Current - Max [Max]	700 mA
Height [z]	4.5 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	71 lm/W
Luminous Flux @ Current/Temperature	2100 lm
Size / Dimension [x]	240 mm
Size / Dimension [y]	10.5 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	75 V

Part	Lumens/Watt @ Current - Test	Color	Height [z]	CCT (K) [Min]	CCT (K) [Max]	Current - Max [Max]	Lens Type	Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Configuration	Luminous Flux @ Current/Temperature
Vishay General Semiconductor - Diodes Division VLPC1201A2J	71 lm/W	Cool White	4.5 mm	5000 K	7000 K	700 mA	Flat	LED Module	75 V	240 mm	10.5 mm	Linear Light Strip	2100 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Linear Light Strip
