VN0101500471
ActiveAmphenol Tuchel Industrial

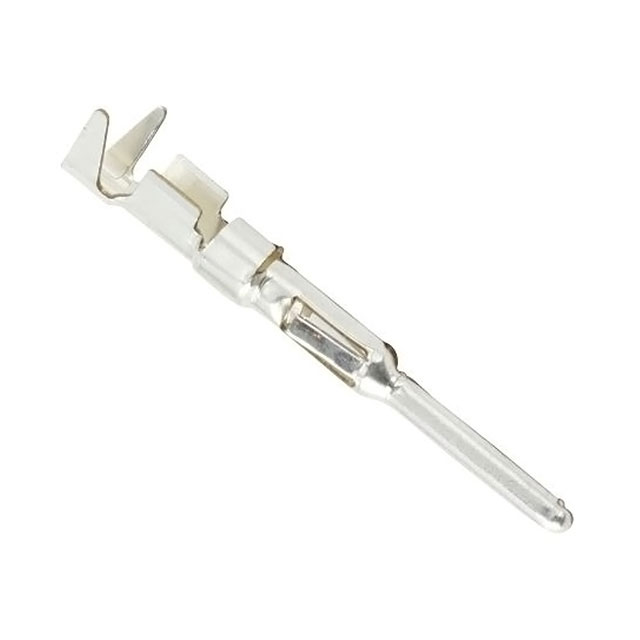

CONTACT PIN 18AWG CRIMP SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VN0101500471
ActiveAmphenol Tuchel Industrial
CONTACT PIN 18AWG CRIMP SILVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VN0101500471 |
|---|---|
| Contact Finish | Silver |
| Contact Size | 1.5 mm |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG | 18 AWG |
| Wire Gauge or Range - mm² [Max] | 1 mm² |
| Wire Gauge or Range - mm² [Min] | 0.75 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| 700 | $ 0.42 | |||
| 1400 | $ 0.35 | |||
| 2800 | $ 0.32 | |||
Description
General part information
VN01015 Series
Pin Contact 18 AWG Size 1.5mm Crimp Silver
