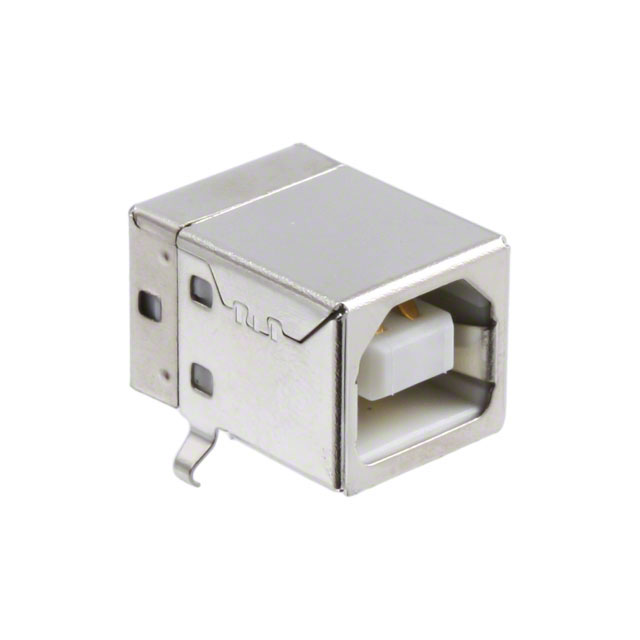

1001-003-02000 - 1001-003-02000

1001-003-02000

Active
CnC Tech, LLC

CONN RCPT USB1.1 TYPEB 4POS R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Recommendations for USBsUSB Soldering Profile (After DC 20/02)+1
1001-003-02000 - 1001-003-02000

1001-003-02000

Active
CnC Tech, LLC

CONN RCPT USB1.1 TYPEB 4POS R/A

Deep-Dive with AI

DocumentsSoldering Recommendations for USBsUSB Soldering Profile (After DC 20/02)+1

Technical Specifications

Parameters and characteristics for this part

Specification1001-003-02000
Connector TypeUSB-B
Current Rating (Amps)1.5 A
GenderReceptacle
Material Flammability RatingUL94 V-0
Mating Cycles1500
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Right Angle
Number of Contacts [custom]4
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
SpecificationsUSB 1.1
TerminationSolder
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 0.66
10$ 0.56
25$ 0.53
40$ 0.52
80$ 0.50
230$ 0.45
440$ 0.41
1600$ 0.40

Description

General part information

1001-003 Series

USB-B (USB TYPE-B) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle
