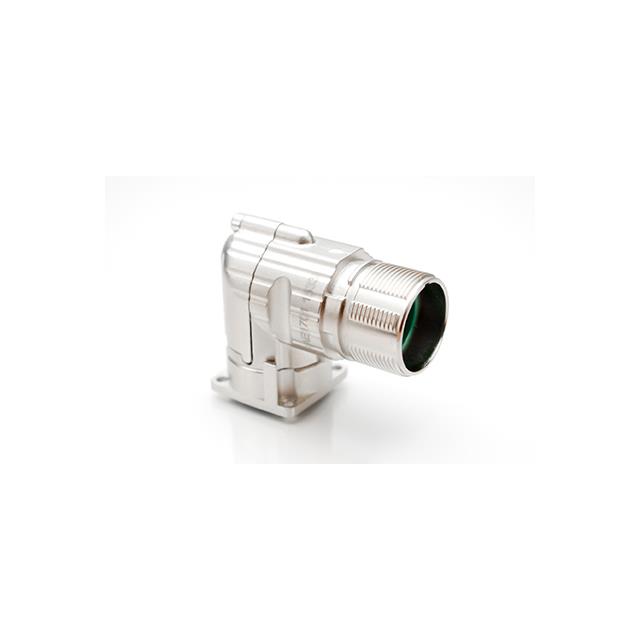

MA2RAE1201

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG F/M 12P PNL MT RA

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG F/M 12P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	MA2RAE1201

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Size	Connector Type	Contact Shape	Contact Type	Features	Orientation	Mounting Feature	Housing Color	Shielding	Type	Note	Fastening Type	Shell Size - Insert	Material Flammability Rating	Number of Positions	Mounting Type	Insert Material	Ingress Protection	Shell Material
Amphenol Sine Systems Corp MA2RAE1201	-20 C	130 °C	Nickel	1 mm	Receptacle Housing	Circular	Crimp	Backshell Rotatable	N	Flange	Silver	Shielded	For Female Sockets or Male Pins	Contacts Not Included	Push-Twist	M23-12	UL94 V-0	12	Panel Mount Right Angle	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable

Technical documentation and resources

No documents available
