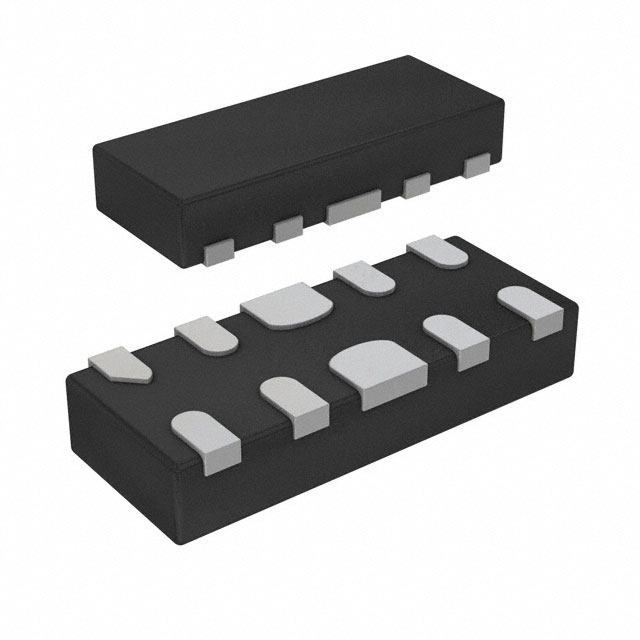

XBP14E5UFN-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 13VC DFN2510-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBP14E5UFN-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 13VC DFN2510-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP14E5UFN-G |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.6 pF |
| Current - Peak Pulse (10/1000µs) | 2.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature | 125 ¯C |
| Package / Case | 10-UFDFN |
| Power Line Protection | True |
| Supplier Device Package | DFN2510-10A |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 13 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| Digi-Reel® | 1 | $ 0.50 | ||
| Tape & Reel (TR) | 5000 | $ 0.13 | ||
| 10000 | $ 0.12 | |||
| 25000 | $ 0.11 | |||
| 50000 | $ 0.11 | |||
Description
General part information
XBP14 Series
13V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10A
