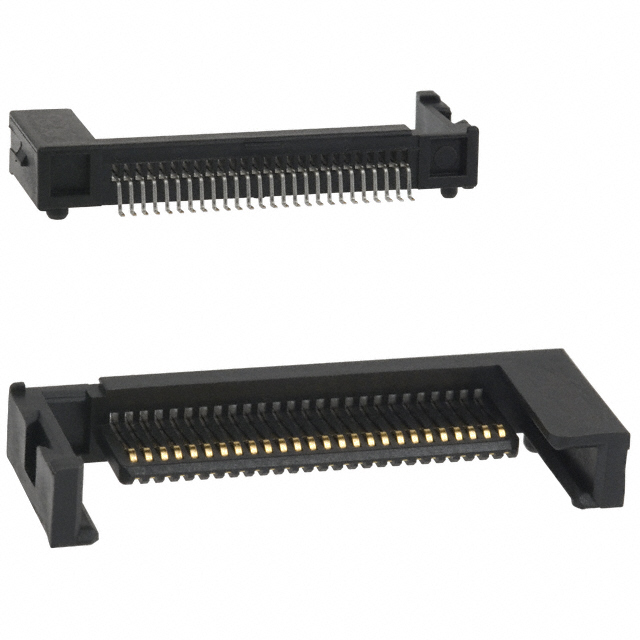

10055262-100BBTLF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10055262-100BBTLF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10055262-100BBTLF |
|---|---|
| Card Type | PCMCIA - ExpressCard™ |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Card Guide, Board Guide |
| Height Above Board | 5.5 mm |
| Height Above Board | 0.217 in |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1600 | $ 1.35 | |
Description
General part information
10055262 Series
26 Position Card Connector PCMCIA - ExpressCard™ Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
