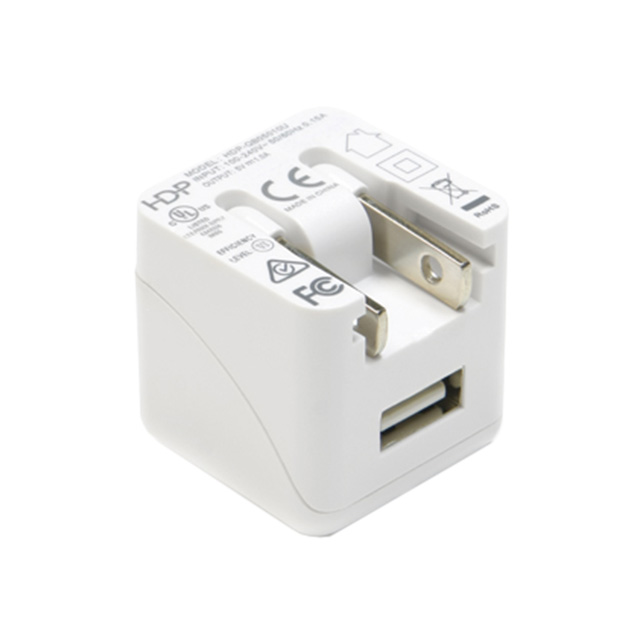

HDP-QB-WUSB-B
ActiveHDP Power
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDP-QB-WUSB-B
ActiveHDP Power
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP-QB-WUSB-B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, RCM, cULus, FCC, SAA, CE, KC, CB |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.06 | |
| 5 | $ 5.76 | |||
| 10 | $ 5.61 | |||
| 25 | $ 5.30 | |||
| 50 | $ 5.00 | |||
| 100 | $ 4.85 | |||
| 250 | $ 4.54 | |||
| 500 | $ 4.24 | |||
Description
General part information
HDP-QB Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
