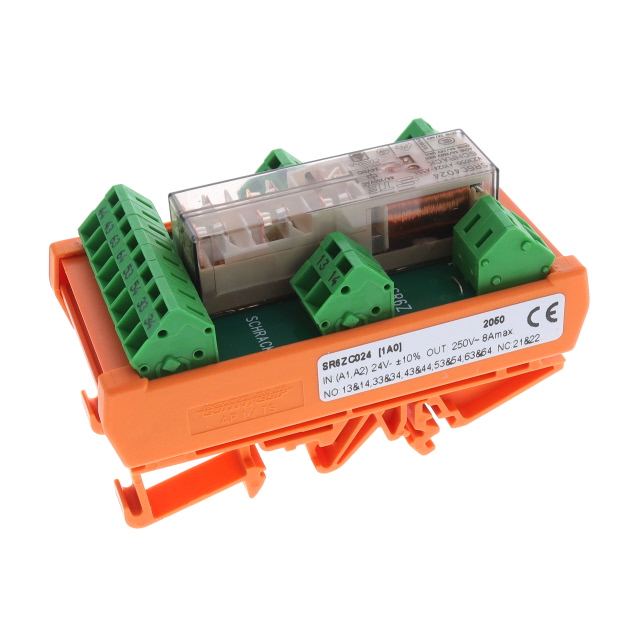

SR6ZC024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 6PST 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR6ZC024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 6PST 8A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR6ZC024 |
|---|---|
| Coil Current | 50 mA |
| Coil Power | 1.2 W |
| Coil Resistance | 480 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | 6PST-5NO/1NC (5 Form A, 1 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 21.6 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Switching Voltage | 250 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 139.01 | |
| 10 | $ 130.83 | |||
| 26 | $ 122.65 | |||
| 50 | $ 114.48 | |||
Description
General part information
SR6Z Series
RELAY GEN PURPOSE 6PST 8A 24V
Documents
Technical documentation and resources
